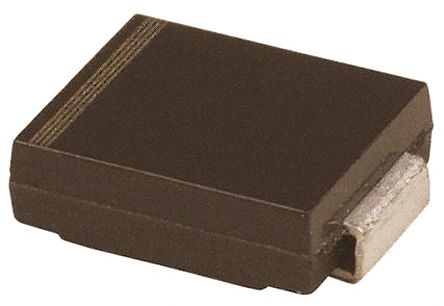

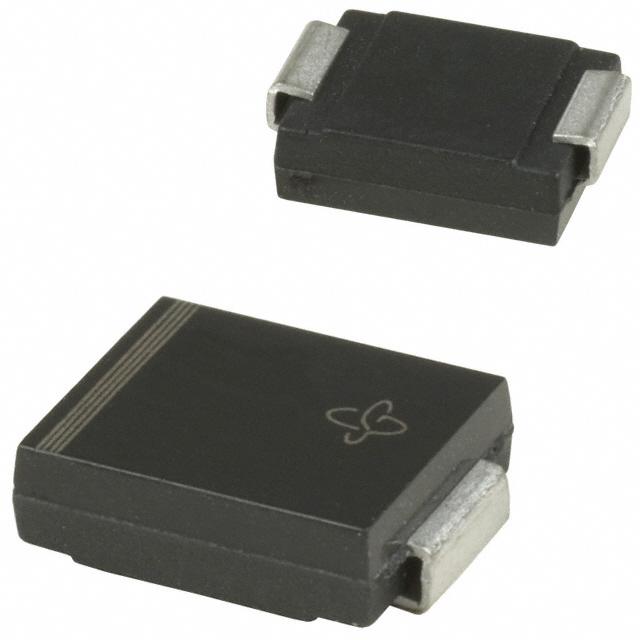

TRANSZORB® 瞬态电压抑制器表面安装双向 3000W，SMC3K 系列，Vishay Semiconductor### 瞬态电压抑制器，Vishay Semiconductor
The TRANSZORB SMC3K series surface-mount Transient Voltage Suppressor Diode offers 3000W peak pulse power capability with a 10/1000µs waveform. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Available in bidirectional polarity
- .
- Excellent clamping capability
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- Halogen-free
- .
- -55 to 150°C Operating junction temperature range
针脚数 2
耗散功率 3 kW
钳位电压 93.6 V
测试电流 1 mA
最大反向击穿电压 71.2 V
脉冲峰值功率 3 kW
最小反向击穿电压 64.4 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 6.22 mm
高度 2.42 mm
封装 DO-214AB
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Consumer Electronics, Industrial, 通用, Automotive, Lighting, Communications & Networking, 车用, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 无铅
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMC3K58CA-M3/57 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMC3K58CAHM3/9A 威世 | 类似代替 | SMC3K58CA-M3/57和SMC3K58CAHM3/9A的区别 |
SMC3K58CAHM3/57 威世 | 类似代替 | SMC3K58CA-M3/57和SMC3K58CAHM3/57的区别 |
SMDJ58CA 力特 | 功能相似 | SMC3K58CA-M3/57和SMDJ58CA的区别 |
