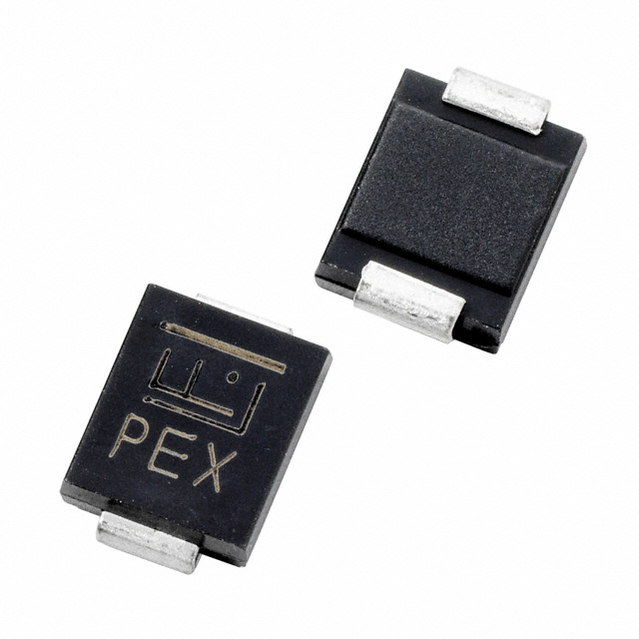

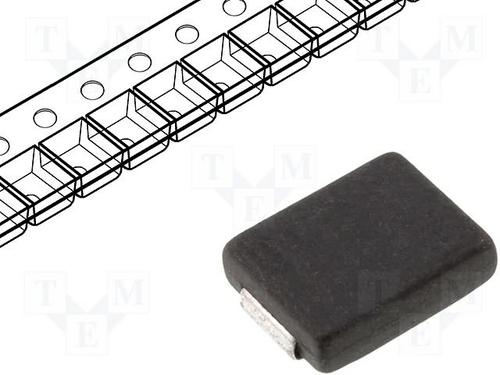

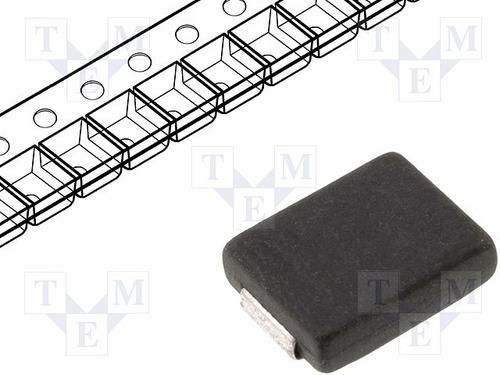

SMDJ100CA

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

Description

The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

TVS devices are ideal for the protection of I/O Interfaces, VCCbus and other vulnerable circuits used in Telecom,

Computer, Industrial and Consumer electronic applications.

立创商城:
Vrwm:100V 3kW

得捷:
TVS DIODE 100VWM 162VC DO214AB

e络盟:
TVS二极管, SMDJ Series, 双向, 100 V, 162 V, DO-214AB SMC, 2 引脚

艾睿:
Sleep easy, never worry about surges again with this SMDJ100CA TVS diode from Littelfuse. Its peak pulse power dissipation is 3000 W. Its test current is 1 mA. Its maximum leakage current is 2 μA. This device&s;s maximum clamping voltage is 162 V and minimum breakdown voltage is 111 V. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.

Chip1Stop:
Diode TVS Single Bi-Dir 100V 3KW 2-Pin DO-214AB T/R

TME:
Diode: transil; 3kW; 117V; 18.5A; bidirectional; ±5%; DO214AB
