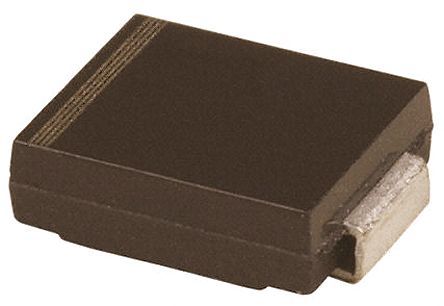

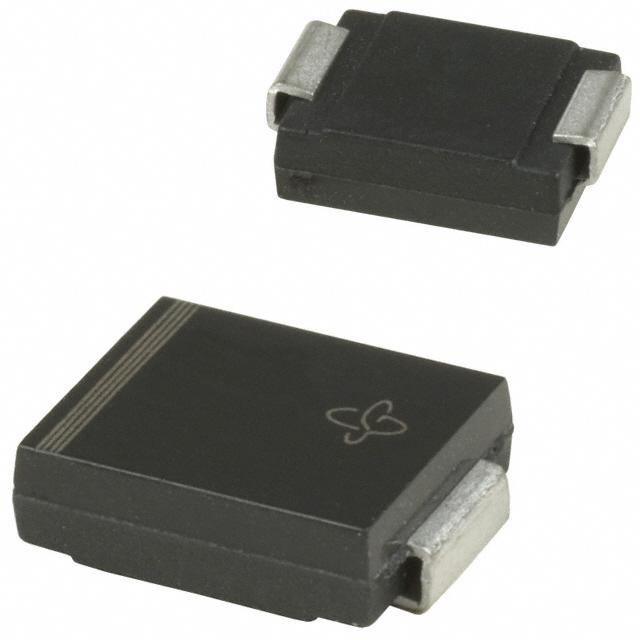

VISHAY SMC3K33CA-M3/57 TVS二极管, AEC-Q290, AEC-Q101 TRANSZORB SMC3K系列, 双向, 33 V, 53.3 V, DO-214AB, 2 引脚
The TRANSZORB SMC3K series surface-mount Transient Voltage Suppressor Diode offers 3000W peak pulse power capability with a 10/1000µs waveform. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Available in bidirectional polarity
- .
- Excellent clamping capability
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- Halogen-free
- .
- -55 to 150°C Operating junction temperature range
针脚数 2
耗散功率 3 kW
钳位电压 53.3 V
测试电流 1 mA
最大反向击穿电压 40.6 V
脉冲峰值功率 3 kW
最小反向击穿电压 36.7 V
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB-2
长度 7.11 mm
宽度 6.22 mm
高度 2.42 mm
封装 DO-214AB-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Automotive, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, 通用, 车用, Sensing & Instrumentation, Industrial, Lighting
RoHS标准 RoHS Compliant
含铅标准 无铅
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMC3K33CA-M3/57 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMDJ33CA 力特 | 功能相似 | SMC3K33CA-M3/57和SMDJ33CA的区别 |
SMDJ36CA 力特 | 功能相似 | SMC3K33CA-M3/57和SMDJ36CA的区别 |
SMC3K33CAHM3/57 威世 | 功能相似 | SMC3K33CA-M3/57和SMC3K33CAHM3/57的区别 |
