STMICROELECTRONICS STTH100W06CW 快速/超快二极管, 双共阴极, 600 V, 100 A, 1.65 V, 75 ns, 360 A
整流器,10A 至 240A,STMicroelectronics
得捷:
DIODE ARRAY GP 600V 50A TO247
立创商城:
600V 50A 55ns
欧时:
STMicroelectronics STTH100W06CW 双 开关二极管, Iout=2 x 50A, Vrev=600V, 3引脚 TO-247封装
e络盟:
快速/超快二极管, 600 V, 100 A, 双共阴极, 1.65 V, 75 ns, 360 A
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode STTH100W06CW rectifier from STMicroelectronics. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its peak non-repetitive surge current is 360 A, while its maximum continuous forward current is 100 A. It is made in a dual common cathode configuration. This rectifier has an operating temperature range of -65 °C to 175 °C.
安富利:
Diode Switching 600V 100A 3-Pin3+Tab TO-247 Tube
Chip1Stop:
Diode Switching 600V 100A 3-Pin3+Tab TO-247 Tube
Newark:
# STMICROELECTRONICS STTH100W06CW Fast / Ultrafast Power Diode, Dual Common Cathode, 600 V, 100 A, 1.65 V, 75 ns, 360 A
正向电压 1.45V @50A
反向恢复时间 75 ns
正向电流 100 A
最大正向浪涌电流(Ifsm) 360 A
正向电压Max 1.65 V
正向电流Max 100 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Through Hole
引脚数 3

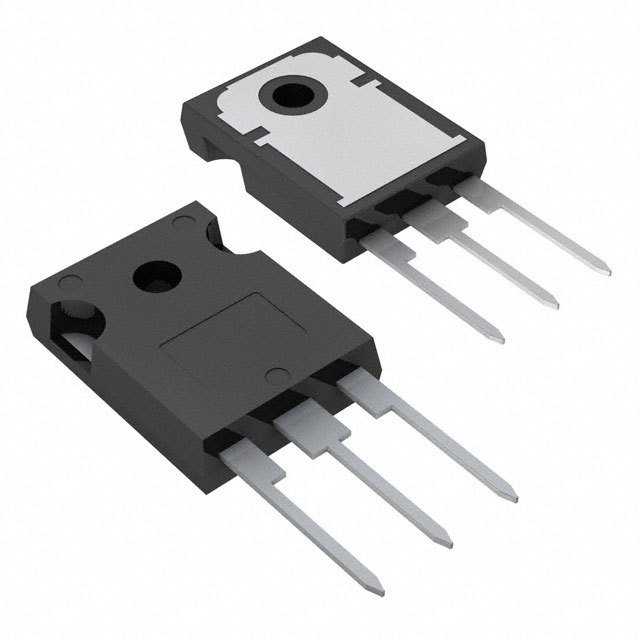

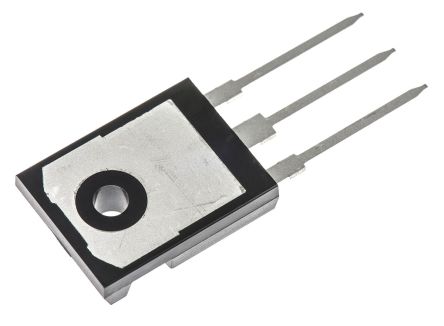

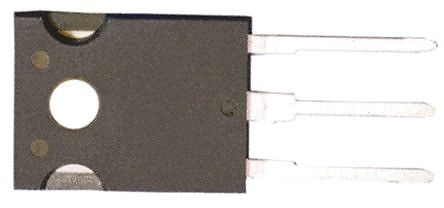

封装 TO-247-3
长度 15.75 mm
宽度 5.15 mm
高度 20.15 mm
封装 TO-247-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
制造应用 工业, Industrial, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
