瞬态电压抑制二极管 Transient Voltage Suppression Diodes
Save yourself hassle by equipping your device with "s TVS diode which will react to sudden or momentary overvoltage conditions. This device"s maximum clamping voltage is 45.4 V and minimum breakdown voltage is 31.1 V. Its peak pulse power dissipation is 200 W. Its maximum leakage current is 1 μA. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
电路数 1
针脚数 2
钳位电压 45.4 V
测试电流 1 mA
最大反向击穿电压 34.4 V
脉冲峰值功率 200 W
最小反向击穿电压 31.1 V
击穿电压 31.1 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

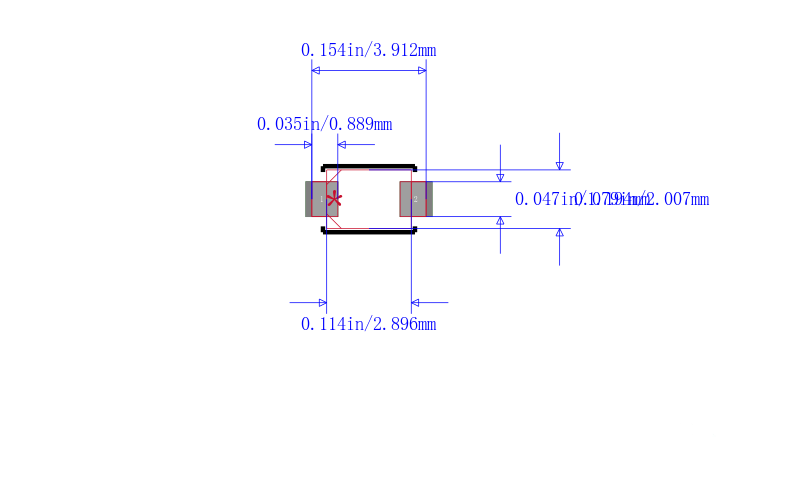

封装 SOD-123F
封装 SOD-123F
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMF28A Littelfuse 力特 | 当前型号 | 当前型号 |
SMF28A-T13 力特 | 完全替代 | SMF28A和SMF28A-T13的区别 |
SMF28AT1G 力特 | 类似代替 | SMF28A和SMF28AT1G的区别 |
