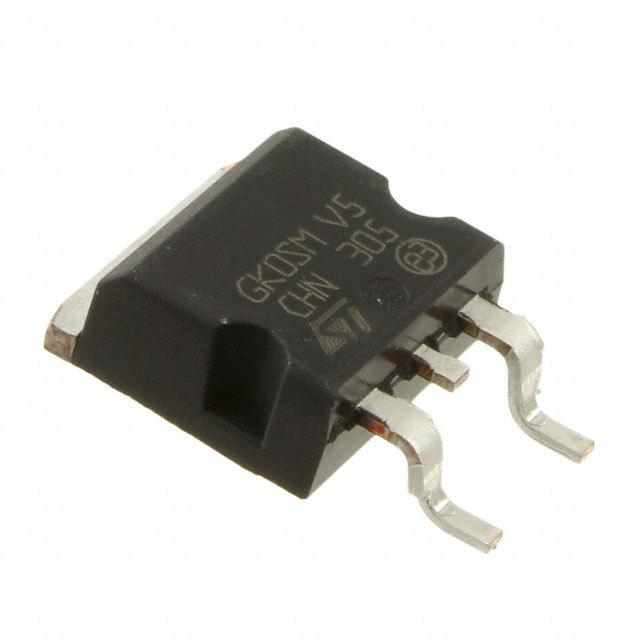

STMICROELECTRONICS STPSC1006G-TR 二极管, 碳化硅肖特基, SIC, 600V系列, 单, 600 V, 10 A, 12 nC, TO-263
Diode Silicon Carbide Schottky 600V 10A Surface Mount D²PAK
得捷:
DIODE SILICON 600V 10A D2PAK
e络盟:
STMICROELECTRONICS STPSC1006G-TR 二极管, 碳化硅肖特基, SIC, 600V系列, 单, 600 V, 10 A, 12 nC, TO-263
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode STPSC1006G-TR rectifier from STMicroelectronics. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This rectifier has an operating temperature range of -40 °C to 175 °C. It is made in a single configuration. Its peak non-repetitive surge current is 160 A, while its maximum continuous forward current is 10 A.
安富利:
Diode Schottky 600V 10A 3-Pin2+Tab D2PAK T/R
Chip1Stop:
Diode Schottky 600V 10A 3-Pin2+Tab D2PAK T/R
Win Source:
DIODE SILICON 600V 10A D2PAK / Diode Silicon Carbide Schottky 600 V 10A Surface Mount D²PAK
正向电压 1.7V @10A
热阻 2℃/W RθJC
反向恢复时间 0 ns
正向电流 10 A
最大正向浪涌电流（Ifsm） 160 A
正向电压Max 1.7 V
正向电流Max 10 A
工作温度Max 175 ℃
工作温度Min -40 ℃
工作结温Max 175 ℃
安装方式 Surface Mount
引脚数 3
封装 TO-263-3
封装 TO-263-3
工作温度 -40℃ ~ 175℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
