SL1011A230A

LITTELFUSE  SL1011A230A  气体放电管 GDT, Low Capacitance, SL系列, 230 V, 轴向引线, 5 kA, 550 V

SL1011A 系列气体放电管

Littelfuse SL1011A 系列 GDT 等离子避雷器在雷电事故引起的快速上升瞬变现象中展现高性能水平。Littelfuse SL1011A 系列还具有超低电容和优化的内部几何结构，确保高频率下的低插入损耗。此外，SL1011A 系列足够坚固，可耐受 5000A 脉冲而不损坏。应用包括宽带器件、ADSL 器件、XDSL 器件、卫星、CATV 器件以及一般电信器件。

超低插入损耗

对快速上升瞬变有极好的响应

欧时:
Littelfuse SL1011A 系列 276V 1kA 轴向 2 电极电涌放电器 气体放电管 GDT SL1011A230A

立创商城:
SL1011A230A

e络盟:
气体放电管 GDT, Low Capacitance, SL系列, 230 V, 轴向引线, 5 kA, 550 V

艾睿:

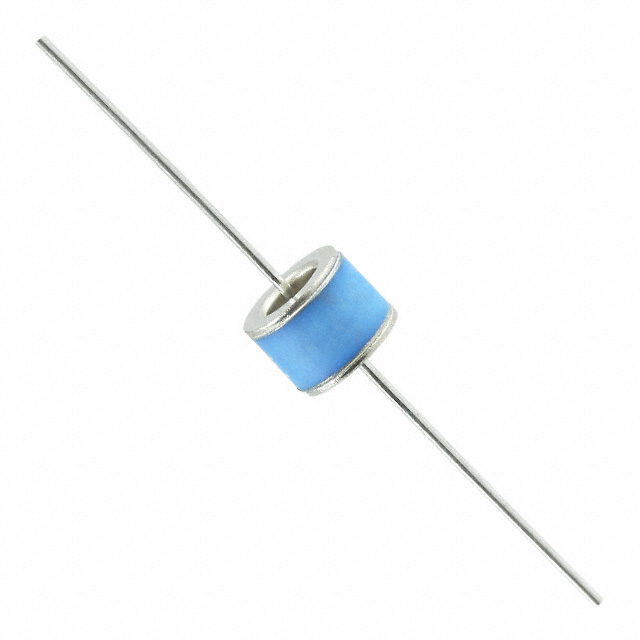

Dissipate voltage transients through a contained plasma gas with this SL1011A230A gas discharge tube from Littelfuse. Its DC sparkover voltage is 230 V, and its impulse discharge current 8x20 us, 10 Hits is 5 A. This item should be stored between -40 °C and 90 °C. This GDT has a minimum operating temperature of -40 °C and a maximum of 90 °C. It has 2 terminals/electrodes. The SL1011A230A GDT has an axial termination style. This product is 6.05 mm long, 8 mm tall and 8 mm deep. This part has a lead diameter of 0.8 mm.

Allied Electronics:
GDT 230V 5KA THROUGH HOLE

Chip1Stop:
Gas Discharge Tubes 230VDC 5KADC 5AAC 1.5pF Axial Thru-Hole

Verical:
Gas Discharge Tubes 230VDC 5kADC 5AAC 1.5pF Axial Thru-Hole

Newark:
# LITTELFUSE  SL1011A230A  GAS DISCHARGE TUBE, 230V
