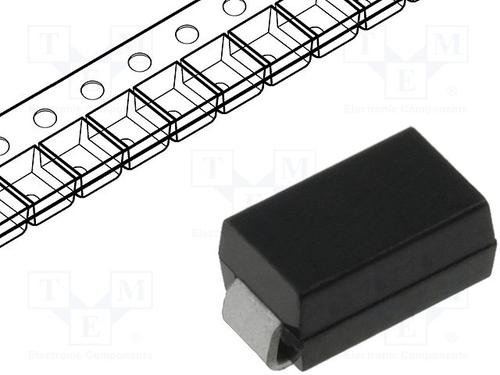

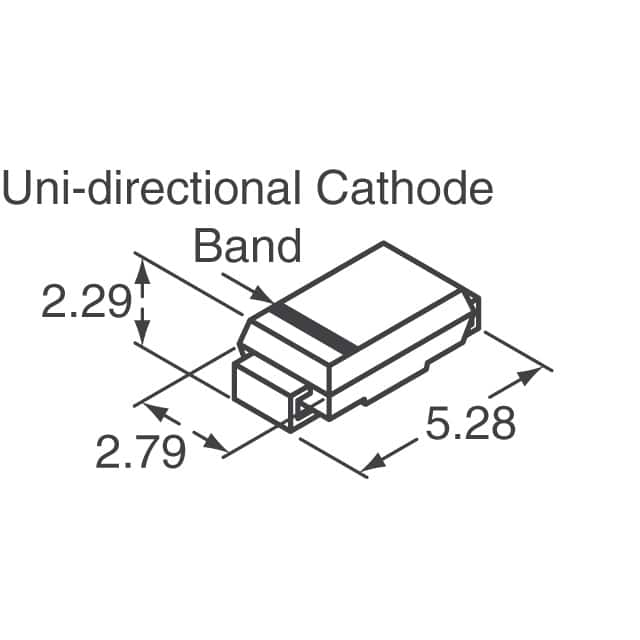

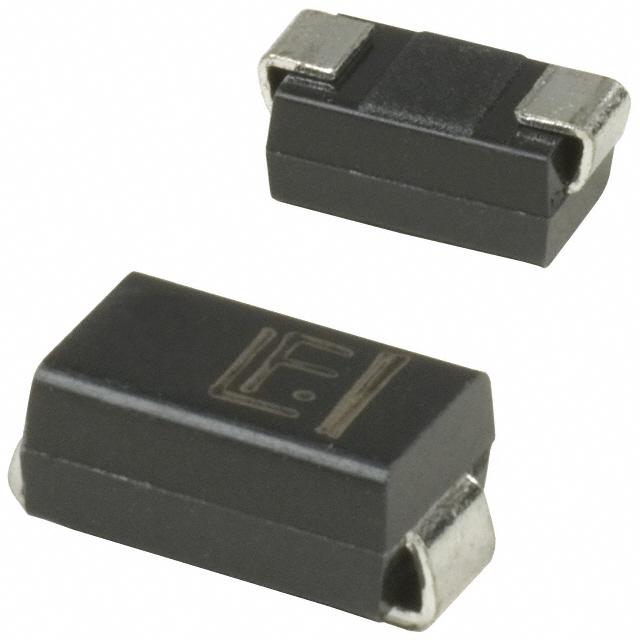

SMAJ350A

SMAJ350A 瞬态抑制二极管TVS/ESD 350V 0.7A/700mA 3.3W DO-214AC/SMA-350V 标记TG

567V 夹子 700mA Ipp TVS - 表面贴装型 DO-214AC（SMA）

得捷:
TVS DIODE 350VWM 567VC DO214AC

立创商城:
单向 Vrwm:350V 400W

贸泽:
ESD Suppressors / TVS Diodes 350Vr 400W 0.7A 5% UniDirectional

e络盟:
TVS二极管, SMAJ Series, 单向, 350 V, 567 V, DO-214AC, 2 引脚

艾睿:
Protect users and systems from overvoltage conditions by equipping your electronic equipment with Littelfuse&s;s SMAJ350A TVS diode. Its test current is 1 mA. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 400 W. This device&s;s maximum clamping voltage is 567 V and minimum breakdown voltage is 391 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

Chip1Stop:
Diode TVS Single Uni-Dir 350V 400W 2-Pin DO-214-AC T/R

TME:
Diode: transil; 400W; 411.5V; 700mA; unidirectional; ±5%; DO214AC

Verical:
TVS Diode Single Uni-Dir 350V 400W 2-Pin SMA T/R

儒卓力:
**TRANSIL UNI 0,4KW 412V SMA **
