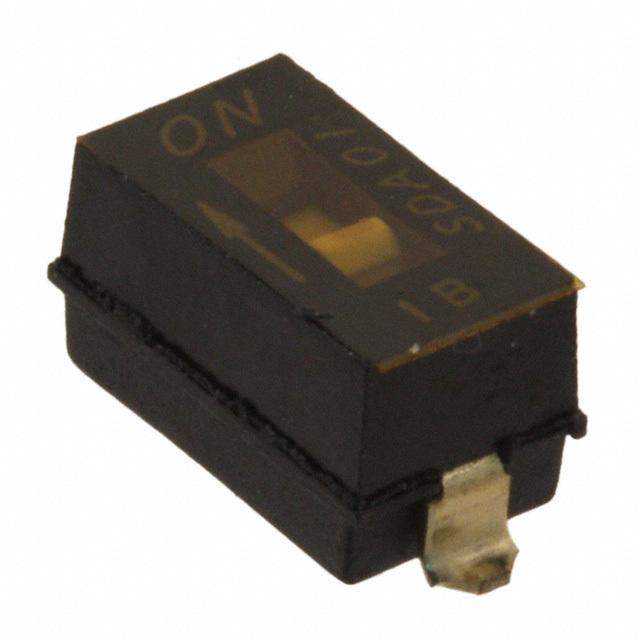

C & K COMPONENTS SDA01H0SBR DIP / SIP开关, SPST, SMD, 1 电路, DIP非密封, 24 VDC
The is a Low Profile Switch with surface-mount terminal and flush PA6T actuator. The SDA series switch has gold plated beryllium copper contact, gold over nickel plated brass terminals and black PPS housing.
- .
- Low profile design saves space
- .
- 50mR Maximum initial contact resistance
- .
- 100MR between terminals Insulation resistance
额定电压DC 24 V
触点类型 SPST
电路数 1
针脚数 1
额定电流Max 0.1A @5VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Surface Mount
封装 DIP
长度 4.52 mm
高度 4.45 mm
封装 DIP
触点材质 Beryllium Copper
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 计算机和计算机周边, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509050
