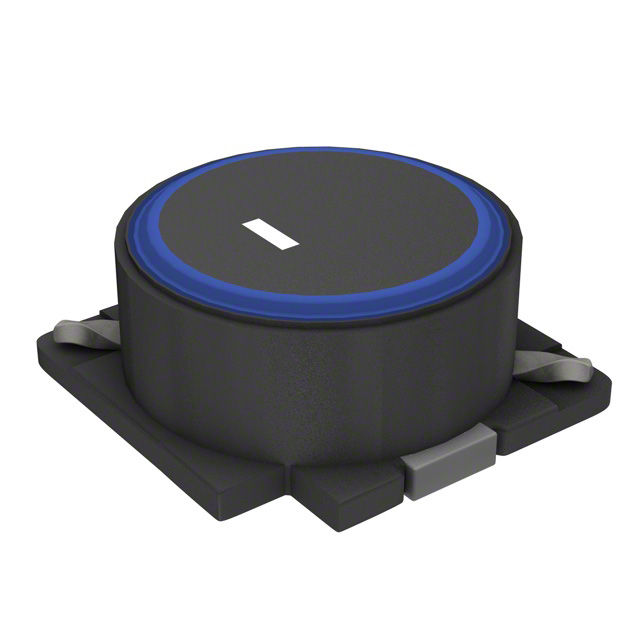

SLF12565T-2R0N6R2-H

1212 2uH ±30%

2µH Shielded Wirewound Inductor 6.2A 9.6mOhm Max Nonstandard

得捷:
FIXED IND 2UH 6.2A 9.6 MOHM SMD

立创商城:
2uH ±30% 16A 8mΩ

艾睿:
An ideal space-saving electronic component is this power SLF12565T-2R0N6R2-H surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device is made with wirewound technology. This product is 12.8 mm long, 6.85 mm tall and 12.8 mm deep. Its test frequency is 1K Hz. It has an inductance of 2u H. This SMD inductor has a maximum DC current of 6.2Typ A with a maximum resistance of 9.6m Ohm.

Chip1Stop:
Ind Power Shielded Wirewound 2uH 30% 1KHz 6.2A T/R

Electro Sonic:
Inductor Power Shielded Wirewound 2uH 30% 1KHz Ferrite 6.2A 9.6mOhm DCR Automotive T/R
