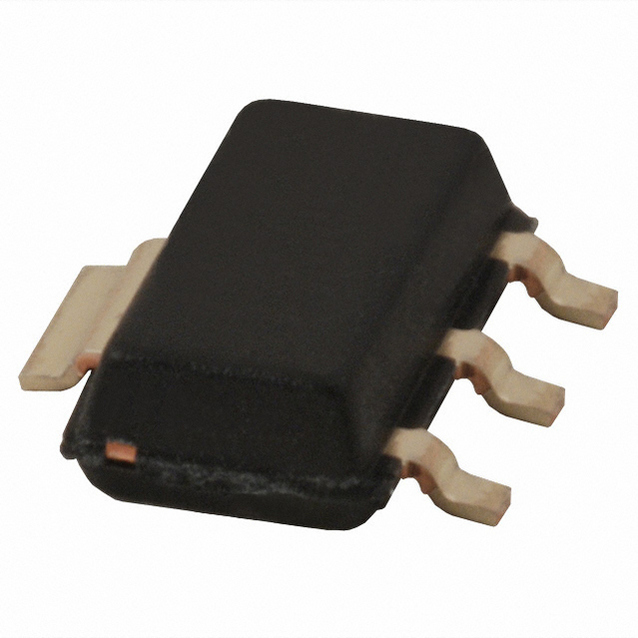

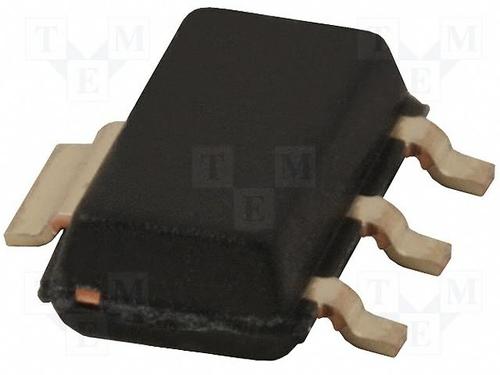

表面贴装传感器 Surface Mount Sensors
Hall-effect position sensors have a thermally balanced integrated circuit over full temperature range. The negative compensation slope is optimized to match the negative temperature coefficient of lower cost magnets. Latching and unipolar versions are available.
**Features:**
* Hall-Effect Technology
* Temperature Compensated Magnetics
* Wide Operating Temperature Range
**Specifications:**
* Package Size: 0.16" W × 0.12" H × 0.06" D
* Leads: 0.59" Long; 0.015" Square
* Lead Spacing: 0.050"
* Termination Style: 3-Pin SIP
Operating Temperature: –40°F to +302°F
* Package Material: Plaskon 3300H
电源电压DC 24.0 V
工作电压 3.8V ~ 30V
输出电压 0.4 V
输出电流 20 mA
供电电流 8.7 mA
输入电流 20 mA
开关电流 20 mA
输出电流Max 20 mA
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 3.8V ~ 30V
电源电压Max 30 VDC
电源电压Min 3.8 V
安装方式 Surface Mount
引脚数 3
封装 SOT-89
长度 4.4958 mm
宽度 2.50 mm
高度 1.4 mm
封装 SOT-89
厚度 1.50 mm
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8543704000
