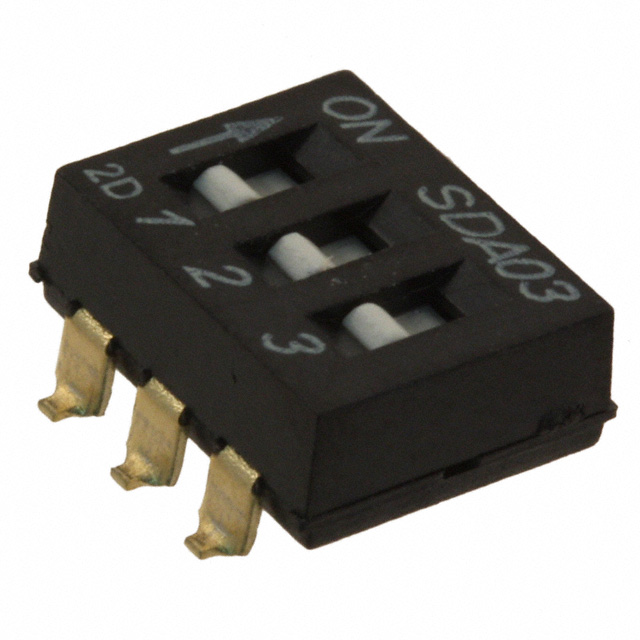

SDA 系列 薄型 单刀单掷 3 位置 表面贴装 密封 DIP 开关
DIP SPST 3 位置 表面贴装型 滑动式(标准) 触动器 25mA 24VDC
得捷:
SWITCH SLIDE DIP SPST 25MA 24V
立创商城:
SDA03H0SBD
艾睿:
Add current flow control to your printed circuit simply through the use of C&a;K Components&s; SDA03H0SBD dual in-line package switch. It has a SPST configuration. This device has a maximum current rating of 0.1 A @ 5VDC. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The SDA03H0SBD DIP switch has a gull wing termination style. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 24 VDC. This product is 9.6 mm long, 4.45 mm tall and 9.3 mm deep.
安富利:
Switch DIP OFF ON SPST 3 Recessed Slide 0.1A 24VDC Gull Wing 1000Cycle 2.54mm SMD Tube
富昌:
SDA 系列 薄型 单刀单掷 3 位置 表面贴装 密封 DIP 开关
Chip1Stop:
Switch DIP OFF ON SPST 3 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube
Verical:
Switch DIP OFF ON SPST 3 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube
Newark:
Switch DIP OFF ON SPST 3 Flush Slide 0.1A 24VDC G
MASTER:
Low Profile DIP
Online Components:
Low Profile DIP
Electro Sonic:
Low Profile DIP
额定电压DC 24 V
额定电流 25 mA
绝缘电阻 100 MΩ
触点类型 SPST
针脚数 3
接触电阻 50 mΩ
额定电流Max 0.1A @5VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Surface Mount
封装 DIP
长度 9.60 mm
高度 4.45 mm
封装 DIP
触点材质 Beryllium Copper
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDA03H0SBD C&K Components | 当前型号 | 当前型号 |
SDA03H0SBR C&K Components | 完全替代 | SDA03H0SBD和SDA03H0SBR的区别 |
SDA03H1SBD C&K Components | 完全替代 | SDA03H0SBD和SDA03H1SBD的区别 |
SDA03H1SKD C&K Components | 完全替代 | SDA03H0SBD和SDA03H1SKD的区别 |
