Switch DIP OFF ON SPST 2 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube
DIP SPST 2 位置 表面贴装型 滑动式(标准) 触动器 25mA 24VDC
欧时:
SWITCH SLIDE DIP SPST 25MA 24V
得捷:
SWITCH SLIDE DIP SPST 25MA 24V
立创商城:
SDA02H0SB
艾睿:

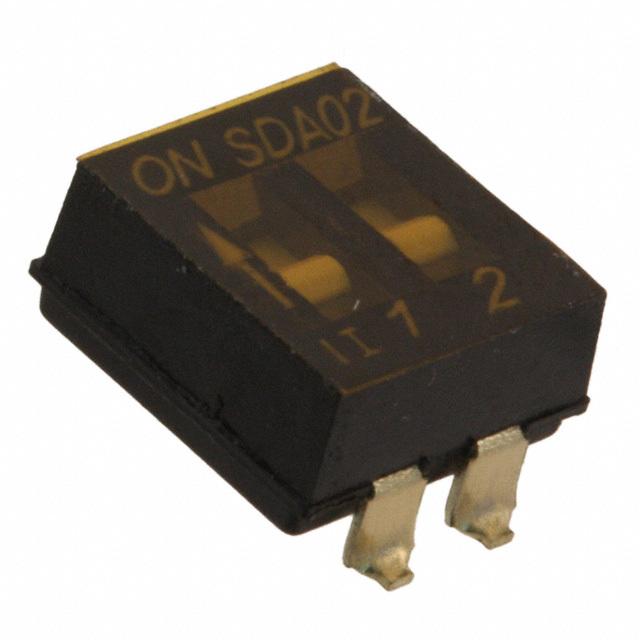

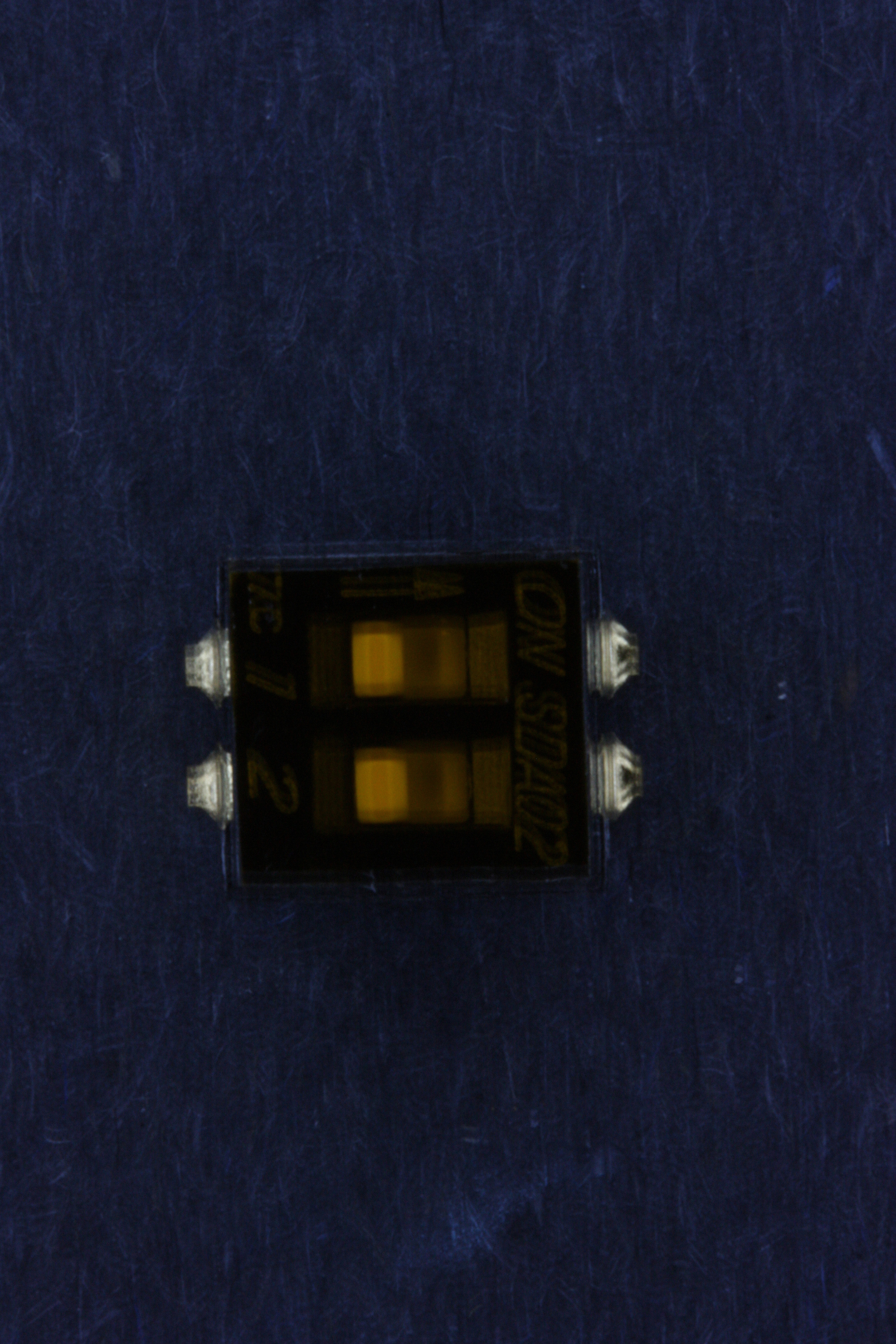

Use C&a;K Components&s; SDA02H0SB dual in-line package switch to easily control different electric paths on a printed circuit board. This device has a maximum current rating of 0.1 A @ 5VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The SDA02H0SB DIP switch has a gull wing termination style. This product is 7.06 mm long, 4.45 mm tall and 9.3 mm deep. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 2.54 mm.
安富利:
Switch DIP OFF ON SPST 2 Recessed Slide 0.1A 24VDC Gull Wing 1000Cycle 2.54mm SMD Tube
富昌:
SDA Series Low Profile SPST 2 Position Surface Mount Sealed DIP Switch
Chip1Stop:
Switch DIP OFF ON SPST 2 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube
Verical:
Switch DIP OFF ON SPST 2 Flush Slide 0.1A 24VDC Gull Wing 1000Cycles 2.54mm SMD Tube
Newark:
# C & K COMPONENTS SDA02H0SB DIP / Rotary DIP
MASTER:
Low Profile DIP
Online Components:
Low Profile DIP
Electro Sonic:
Low Profile DIP
Win Source:
SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 2 Position Surface Mount Slide Standard Actuator 25mA 24VDC
额定电压DC 24 V
触点类型 SPST
针脚数 2
额定电流Max 0.1A @5VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Surface Mount
封装 DIP

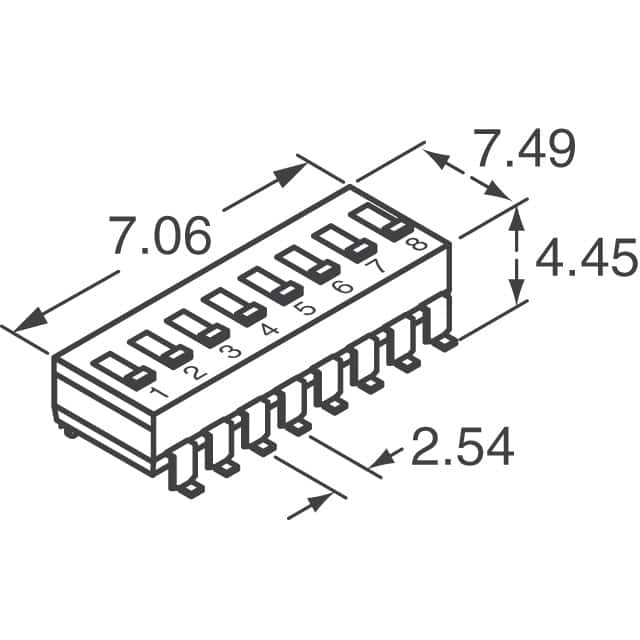

长度 7.06 mm
高度 4.45 mm
封装 DIP
触点材质 Beryllium Copper
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SDA02H0SB C&K Components | 当前型号 | 当前型号 |
SDA02H0SBR C&K Components | 完全替代 | SDA02H0SB和SDA02H0SBR的区别 |
SDA02H0SK C&K Components | 类似代替 | SDA02H0SB和SDA02H0SK的区别 |
219-2LPSTR 西迪斯 | 功能相似 | SDA02H0SB和219-2LPSTR的区别 |
