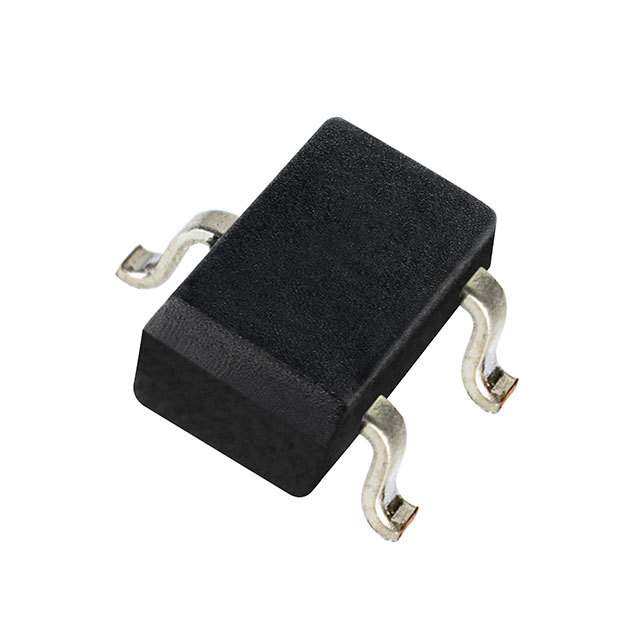

HONEYWELL SM351RT 霍尔效应传感器, 磁阻, 全极, 40 µA, SOT-23, 3 引脚, 3 V, 24 V
The is an ultra-sensitive Magnetoresistive Sensor designed for manufacturers who need a durable and reliable speed or position sensor for large air gaps or small magnetic fields in standard power typically 3 to 24VDC applications. The standard power series IC with solid state design offers ultra-high sensitivity of 11G maximum, making it the highest sensitivity sensor in its class for standard powered applications. The magnetoresistive sensor ICs, respond to either a North or South pole applied in a direction parallel to the sensor. They do not require the magnet polarity to be identified, simplifying installation.
输出电流 40 µA
针脚数 3
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 24V
电源电压Max 24 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 3

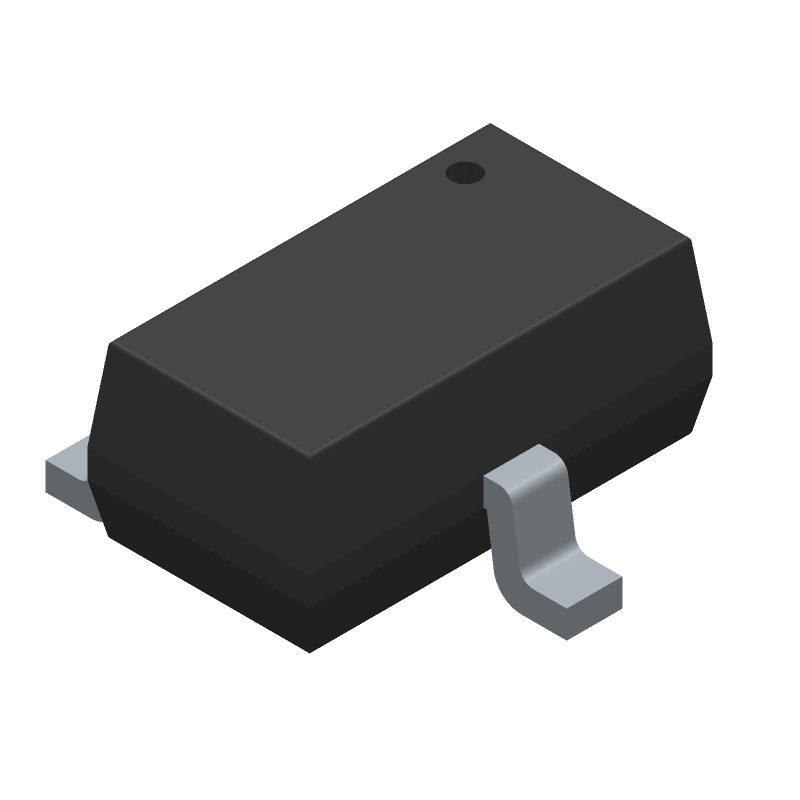

封装 SOT-23-3
高度 1.2 mm
封装 SOT-23-3
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 测试与测量, 医用, Medical, Sensing & Instrumentation, Metering, 计量, 传感与仪器, Motor Drive & Control, 电机驱动与控制, Test & Measurement, HVAC
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8542390001
