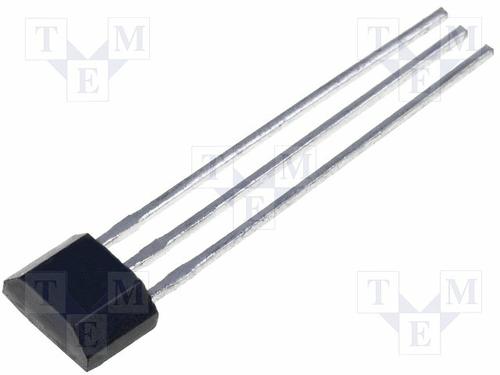

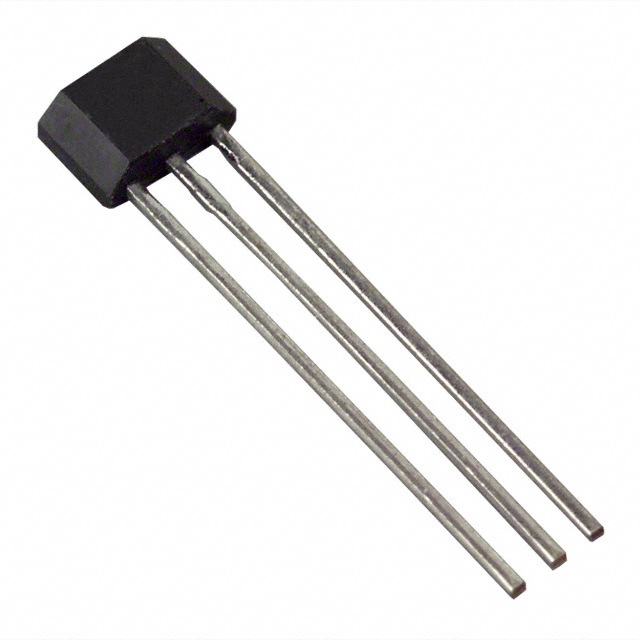

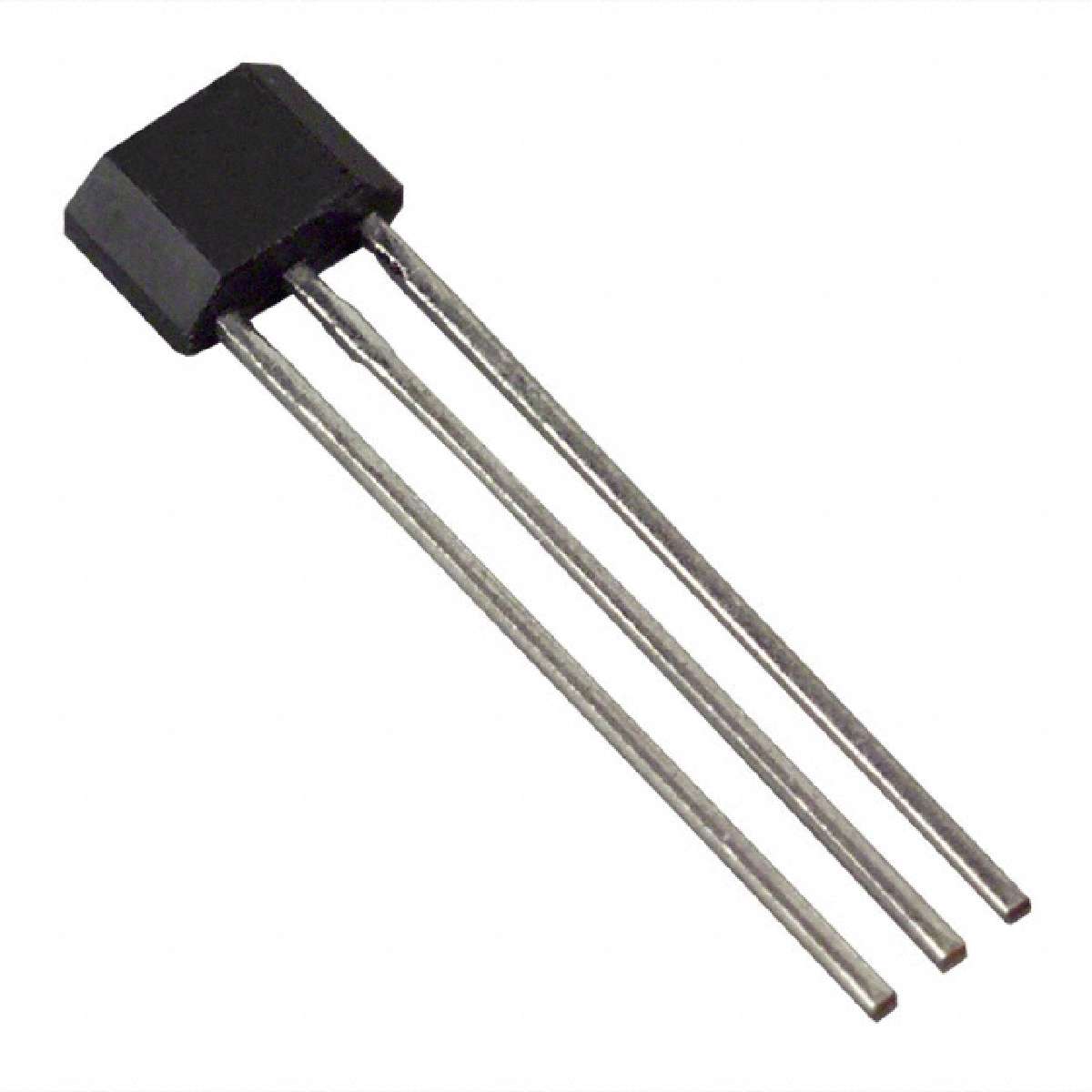

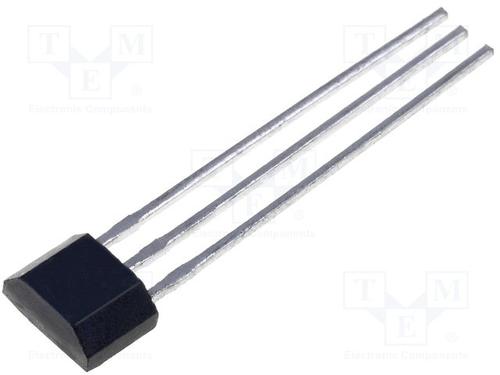

HONEYWELL SS461R 霍尔效应传感器, 双极性, 20 mA, TO-92, 3 引脚, 3 V, 24 V
The is a versatile, digital Hall Effect Sensor, operated by the magnetic field from a permanent magnet or an electromagnet and designed to respond to alternating North and South poles. The SS361RT is turned on by a North Pole. This latching digital hall effect sensor IC has enhanced sensitivity of only 50G typical, at 25°C 77°F that often allows for the use of less expensive magnets or wider air gaps. The device offers a robust IC design with reverse polarity protection and 150°C 302°F capability.
电源电压DC 3.00V min
工作电压 3V ~ 24V
输出电压 28 V
输出电流 20 mA
供电电流 8 mA
针脚数 3
输出电流Max 20 mA
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 3V ~ 24V
电源电压Max 24 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 3
封装 TO-92-3
长度 4.1 mm
封装 TO-92-3
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Each
制造应用 测试与测量, 机器人, Robotics, Sensing & Instrumentation, 传感与仪器, Motor Drive & Control, 电机驱动与控制, Test & Measurement
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8542390000
