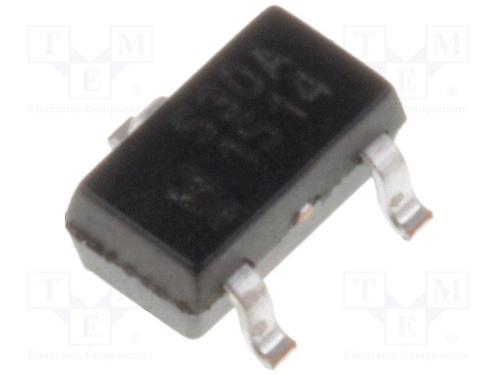

SS30AT

HONEYWELL  SS30AT  霍尔效应磁性传感器/t/t

Hall-effect position sensors have a thermally balanced integrated circuit over full temperature range. Most unit have reverse polarity protection and can operate from 3.0 to 24 VDC Bipolar, latching, unipolar and omnipolar magnetic types are available. Package types include 3-Pin SIP flat TO-92 and surface-mount SOT-23.

**Features:

**

* Hall-Effect Technology**

**

* Temperature Compensated Magnetics**

**

* Wide Operating Temperature Range**

**

* Reverse Polarity All Except SS411P, SS311PT**

**

* Built-In Pull-Up Resistor SS411P, SS311PT Only**

**

* All SS3x P/N"s Are on Tape & Reel 3000/Reel**

Specifications:

**

* Package Size:**

**Flat TO-92: 0.16" W × 0.12" H × 0.06" D**

**SOT-23: 0.11" W × 0.06" H × 0.05" D**

**

* Lead Spacing: 0.050" SIP**

**

* Termination Style: 3-Pin SIP or 3-Pin SMT
