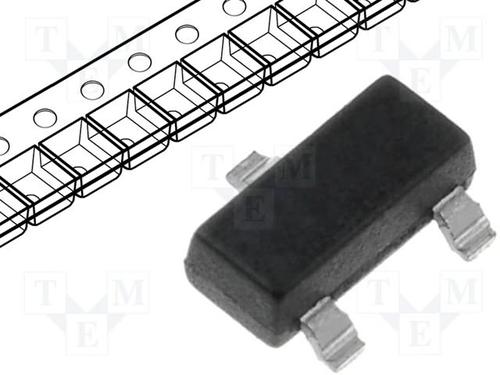

HONEYWELL SS343RT 霍尔效应传感器, 单极性, 20 mA, SOT-23, 3 引脚, 3 V, 24 V
The is an unipolar digital Sensor IC, small, versatile Hall-effect device that is operated by the magnetic field from a permanent magnet or an electromagnet. This is designed to respond to a single pole: North SS340RT or South SS440R. The SS343RT small size requires less PC board space, allowing it to be used in smaller assemblies. Its 3VDC capability allows for use in low voltage applications, promoting energy efficiency. Suitable in a variety of potential motion control, lid closure detection and displacement sensing applications. It has reverse polarity protection to protect the device from potential damage during installation. May be mounted to the frame of the conveyor, with a magnet mounted on the tail pulley. When the magnet revolves past the sensor, it produces one output per revolution, providing an intermittent visual or audible signal at a remote location to assure stability.
ESD sensitive device, take proper precaution while handling the device.
电源电压DC 3.00V min
输出电压 28 V
输出电流 20 mA
供电电流 8 mA
针脚数 3
输出电流Max 20 mA
工作温度Max 150 ℃
工作温度Min -40 ℃
电源电压 3V ~ 24V
电源电压Max 24 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.9 mm
封装 SOT-23-3
工作温度 -40℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, Robotics, 工业, Sensing & Instrumentation, 传感与仪器, 医用, Medical, 机器人, HVAC
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2017/07/07
ECCN代码 EAR99
HTS代码 8542390000
