SR151A330JAR

AVX  SR151A330JAR  多层陶瓷电容, SkyCap SR系列, 33 pF, ± 5%, C0G / NP0, 100 V, 径向引线

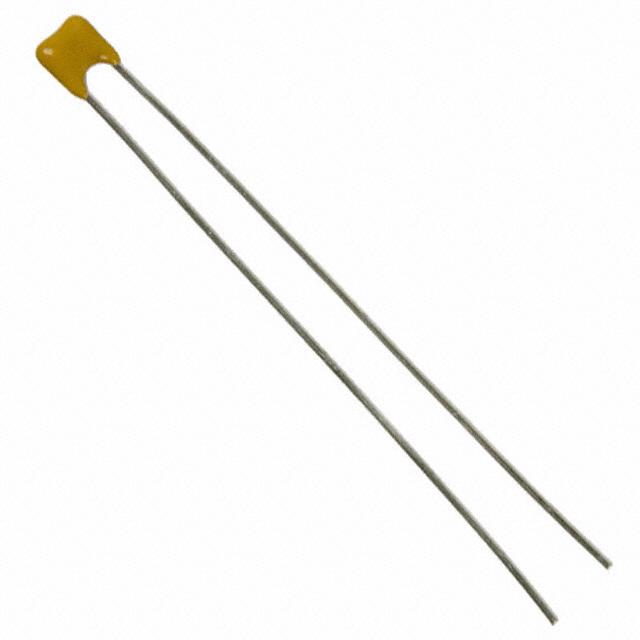

The is a conformally coated radial leaded multilayer Ceramic Capacitor with 100V voltage rating.

.

Epoxy Case

.

100% Tin Lead

欧时:
Radial Capacitor SR15 100V COG 33pF 5%

e络盟:
多层陶瓷电容, 33 pF, 100 V, SkyCap SR系列, ± 5%, 径向引线, C0G / NP0

艾睿:

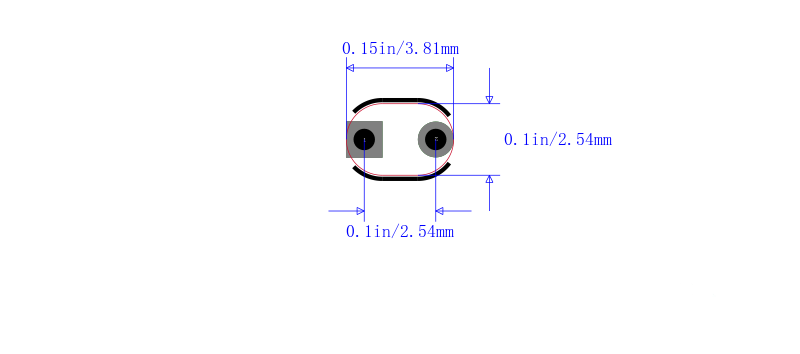

This SR151A330JAR multilayer ceramic capacitor from AVX uses different ceramic dielectric materials to achieve a variety of capacitance values, voltage ratings, package sizes, and other parameters. It can withstand a voltage of 100 VDC. Users like its straight wire form. This MLCC capacitor has a maximum operating temperature of 125 °C. This product comes packaged in bulk, so the parts will be stored loosely. Its capacitance value is 33pF. This product is 3.81Max mm long, 3.81Max mm tall and 2.54Max mm deep. It has a tolerance of 5%. The SR151A330JAR MLCC capacitor has a radial termination style.

安富利:
Cap Ceramic 33pF 100V C0G 5% Radial 2.54mm 125°C Bulk

Verical:
Cap Ceramic 33pF 100V C0G 5% Radial 2.54mm 125C Bulk

Newark:
# AVX  SR151A330JAR  Multilayer Ceramic Capacitor, 33 pF, 100 V, SkyCap SR Series, ± 5%, Radial Leaded, C0G / NP0
