SS22SDP2

NKK SWITCHES  SS22SDP2  拨动开关, SS系列, DPDT, 开-无-开, 通孔安装, 100 mA

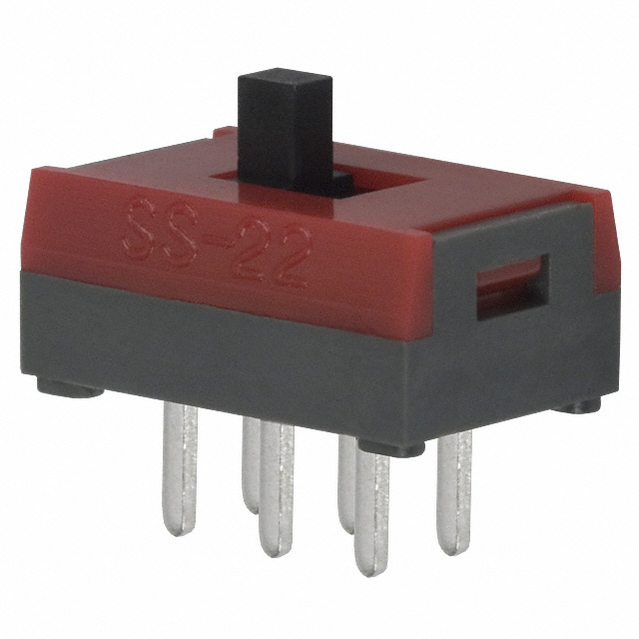

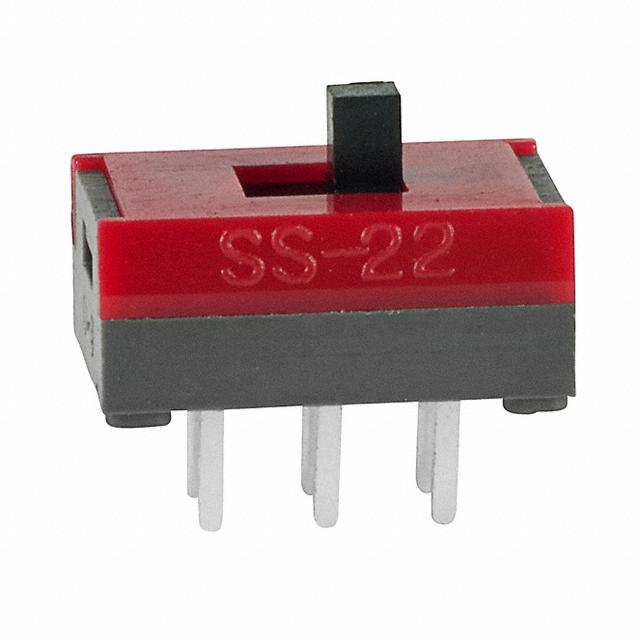

The is a double-pole double-throw DPDT ultra miniature Slide Switch with brass with silver plating terminals, ON-NONE-ON function and top actuation. The SS series slide switch has polyamide actuator and phenolic resin thermoset interior base. The compact dimensions and low profile allow high density mounting and close stacking of PC boards. The double moulded thermoset base and thermo-plastic housing prevent loosening of terminals due to high soldering temperatures.

.

Crisp actuation positively indicates circuit status

.

0.100 x 0.100" Terminal spacing

.

20mR Maximum contact resistance

.

100MR at 500VDC Minimum insulation resistance

.

500VAC for one minute Minimum dielectric strength

.

10000 operations Minimum mechanical life

.

10000 operations Minimum electrical life
