S6A

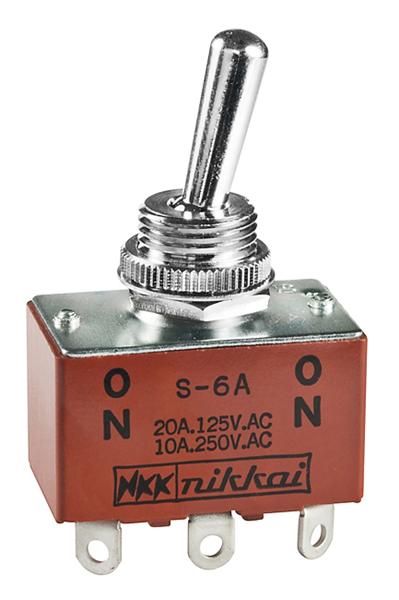

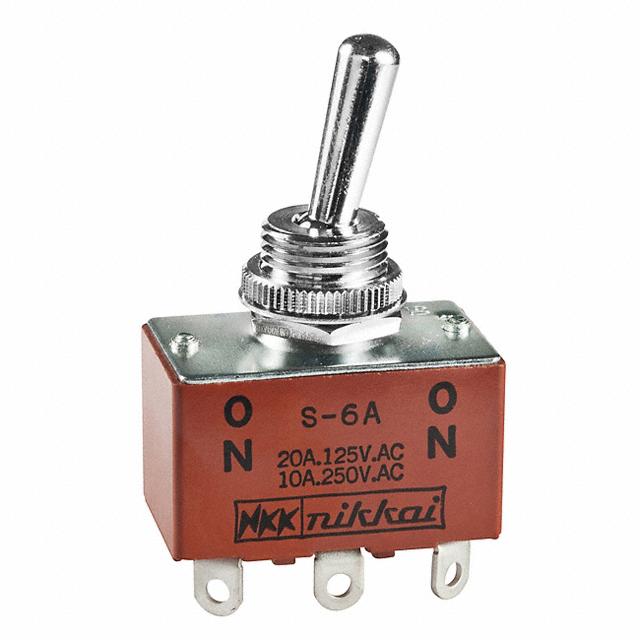

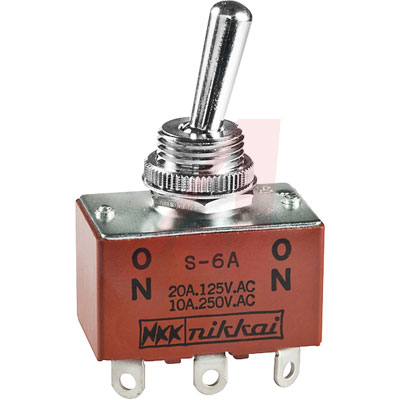

NKK SWITCHES  S6A  拨动开关, DPDT, 20A, 125V

KK series S toggle switches are medium capacity standard size toggles with M12 threaded bushings for secure panel mounting. Model is a DPDT version rated DC 30V at 20 amps with solder lug terminals. UL recognized and CSA approved models are available.

e络盟:
拨动开关, DPDT, 20A, 125V

艾睿:
The medium capacity S6A toggle switch from NKK Switches comes with minimal lag when toggling a component of your circuit. It has a DPDT configuration. This device has a maximum current rating of 20 A @ 125VAC 30VDC. This toggle switch has an operating temperature range of -10 °C to 70 °C. The S6A toggle switch has a solder lug termination style. This product is 31.2 mm long, 53.2 mm tall and 18.6 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.

Allied Electronics:
SWITCH, DPDT ON NONE ON, MEDIUM CAPACITY

Chip1Stop:
Switch Toggle ON None ON DPDT Round Toggle Solder Lug 20A 250VAC 30VDC Panel Mount with Threads

Verical:
Switch Toggle ON None ON DPDT Round Lever Solder Lug 20A 250VAC 30VDC Panel Mount with Threads

Newark:
# NKK SWITCHES  S6A  Toggle Switch, Non Illuminated, DPDT, On-None-On, Panel, 20 A

Powell:
Toggle Switches DPDT ON-ON MED CAP SOLDER LUG
