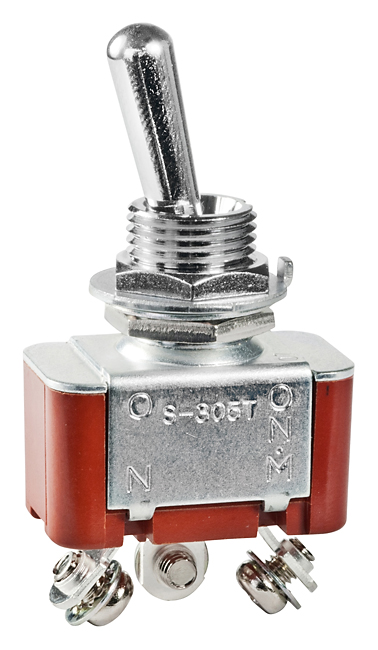

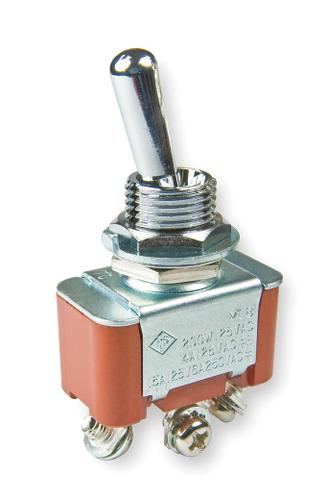

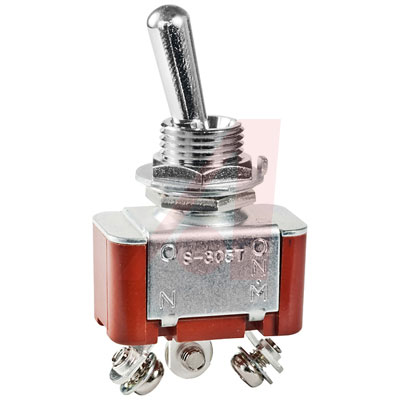

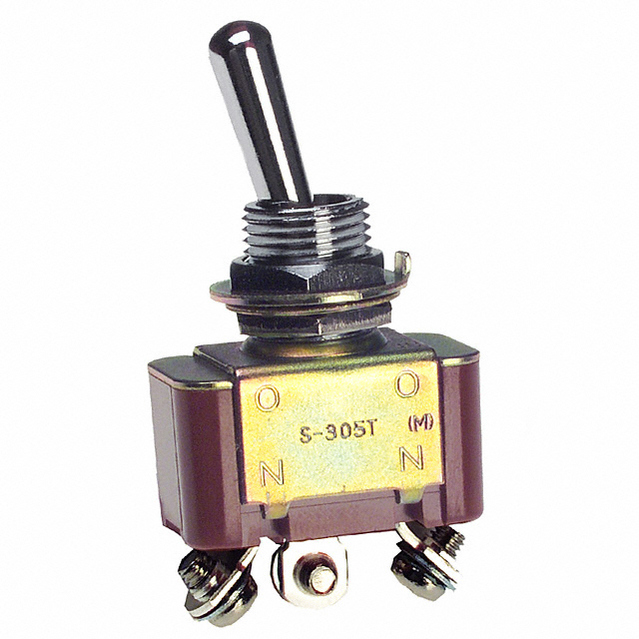

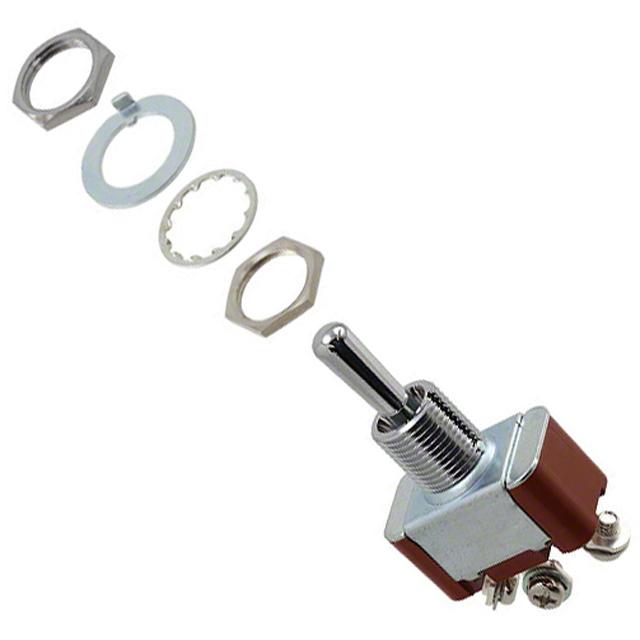

S305T

NKK SWITCHES  S305T  拨动开关, SPDT, 20A, 250VAC

Series S medium/high capacity standard size toggle switches employ chrome plated brass, steel and phenolic resin in the right places to produce a long lasting lightweight switch. If needed, add "/C" to end of part number to order CSA mark on switch.

e络盟:
拨动开关, SPDT, 20A, 250VAC

艾睿:
The medium/high capacity S305T toggle switch from NKK Switches is a simple way to power on and off various components of your application. It has a SPDT configuration. This device has a maximum current rating of 20 A @ 30VDC. This toggle switch has a minimum operating temperature of -10 °C and a maximum of 70 °C. The S305T toggle switch has a screw lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 28.5 mm long and 16 mm.

Allied Electronics:
Switch, Toggle; SPDT On None On; 15A 125VAC; 0.689in. Bat; 12mm Bushing; Screws

富昌:
S 系列 单刀双掷 开-空-瞬时 螺丝 接线片 钮子开关

Chip1Stop:
Switch Toggle ON None Mom SPDT Round Lever Screw Lug 20A 250VAC 30VDC Panel Mount with Threads

Verical:
Switch Toggle ON None ON SPDT Round Lever Screw Lug 20A 250VAC 30VDC Panel Mount with Threads

Newark:
# NKK SWITCHES  S305T  Toggle Switch, Non Illuminated, SPDT, On-None-On, Panel, 20 A

Powell:
STD SIZE TOGGLE/LOW TO HIGH CAPACITY

Win Source:
SWITCH TOGGLE SPDT 15A 125V / Toggle Switch SPDT Panel Mount
