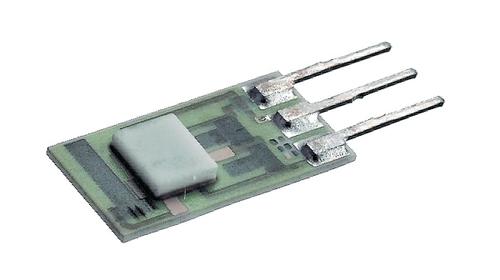

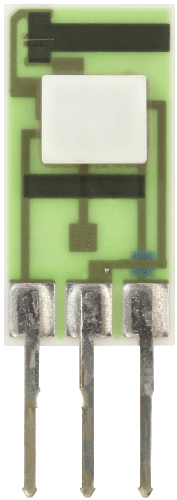

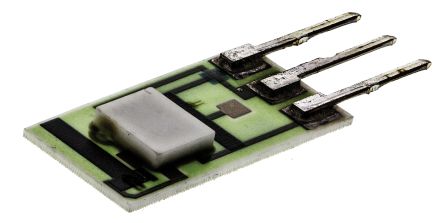

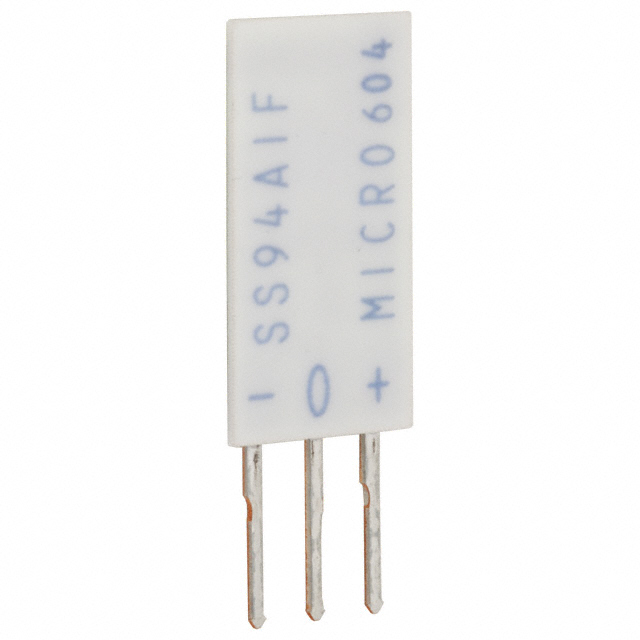

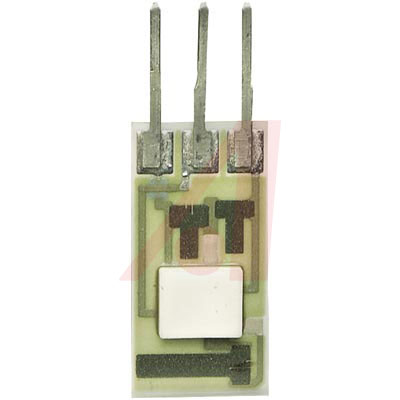

SS94A1

HONEYWELL  SS94A1  霍尔效应传感器, 线性, 1 mA, SIP, 3 引脚, 6.6 V, 12.6 V

LOHET 集成电路

陶瓷底座，线性霍尔效果比例输出设备，可产生与其所在磁场强度成比例的输出电压

三引脚直向印刷电路板接线端子，间隔为 0.1in.

激光微调薄膜和厚膜电阻器

-40 至 125°C 工作范围

**LOHET** | **电源电压（V 直流）** | **电源直流 mA** | **输出电流 mA 阱或电流源** | **响应时间** | **磁性特征** | **线性** | **V**out** V

（25°C 时为 0 高斯

.

*

---|---|---|---|---|---|---|---

I | 8 至 16 | 15 | - | 3 ms | - | - | -

II | 6.6 至 12.6 | 13 典型，30 最大 | 1 最大 | 3 ms | 0.625 Vs | 0.8 典型值 - 1.5 最大值 | 4.00 ± 0.4V

得捷:
SENSOR HALL ANALOG CERAMIC SIP

欧时:
LOHET II general purpose hall effect IC

贸泽:
板机接口霍耳效应/磁性传感器 Linear position 6.6vdc - 12.6vdc

艾睿:
Linear Position Sensor 12.6V Analog Output 3-Pin SIP

Allied Electronics:
Sensor; Sink/Source; 6.6 to 12.6 VDC; 30 mA Max. @ 25 degC; 1 mA Max.

Chip1Stop:
Analog Position Sensor 3-Pin SIP

TME:
Sensor: Hall; Case: SIP; Uin:6.6÷12.6V; Temp: -40÷125°C

Verical:
Linear Position Sensor 12.6V Analog Output 3-Pin SIP

Newark:
# HONEYWELL  SS94A1  Hall Effect Sensor, Linear, 1 mA, SIP, 3 Pins, 6.6 VDC, 12.6 VDC

儒卓力:
**HallLinear Analog **

MASTER:
Honeywell Hall-effect Linear Position Sensor ICs: SS94 Series, General Purpose Ratiometric Linear Sensor IC, 3-pin, Through-hole ceramic substrate, 5 mV/G at 8 Vdc supply voltage

Powell:
Sensors, Magnetic Position Sensors, PCB level Position Sensors Ceramic package - Linear Hall

Online Components:
Honeywell Hall-effect Linear Position Sensor ICs: SS94 Series, General Purpose Ratiometric Linear Sensor IC, 3-pin, Through-hole ceramic substrate, 5 mV/G ...

GOPHER:
Hall Effect Sensor ANALOG POSITION PLASTIC PACKAGE SINK/SOURCE OUT 3 PIN SIP 6.6-12.6 VDC SUPPLY VOLTAGE, -500 TO 500 GAUSS

DeviceMart:
SENSOR ANALOG SS GEN PURPOSE

Electro Sonic:
Honeywell Hall-effect Linear Position Sensor ICs: SS94 Series, General Purpose Ratiometric Linear Sensor IC, 3-pin, Through-hole ceramic substrate, 5 mV/G ...
