压力传感器

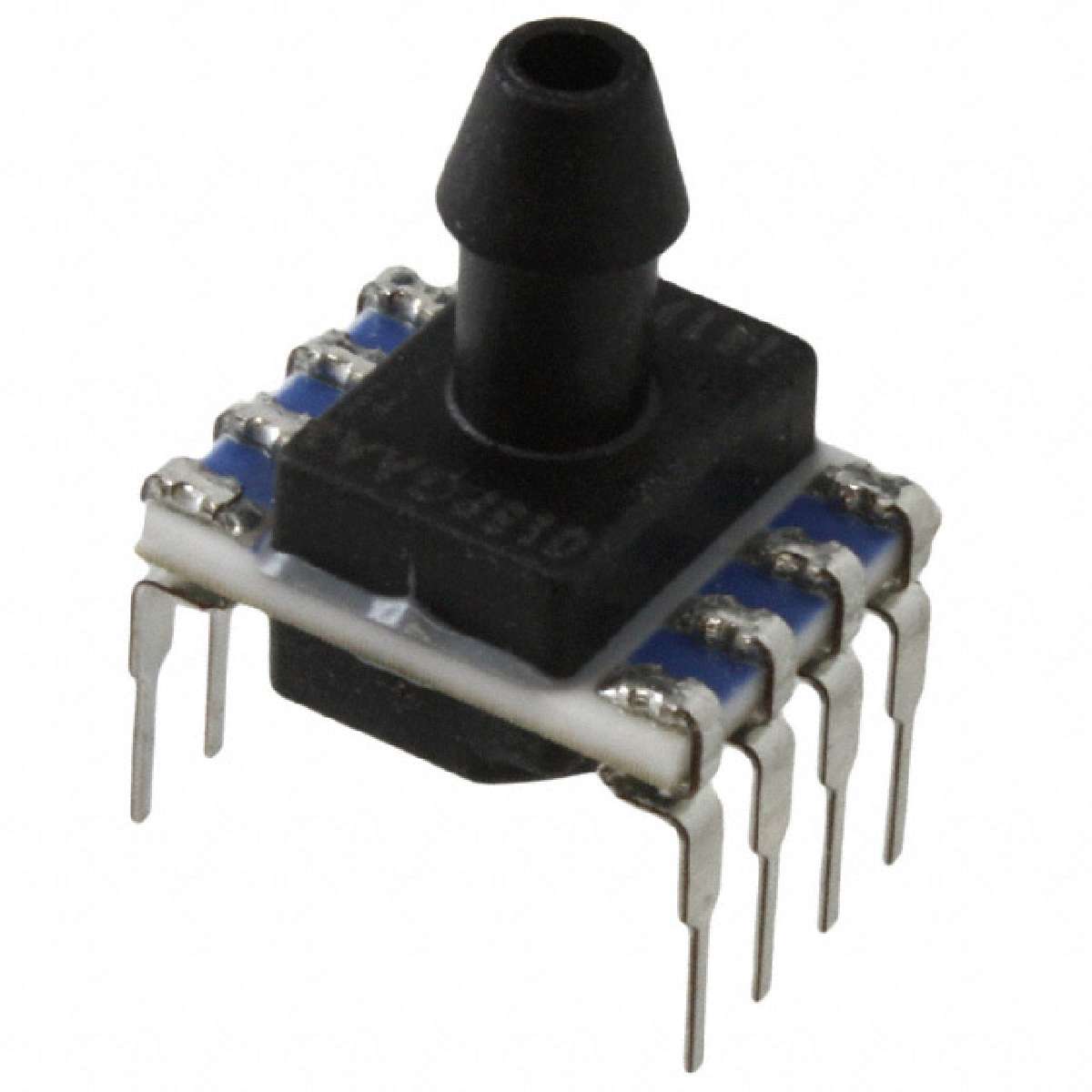

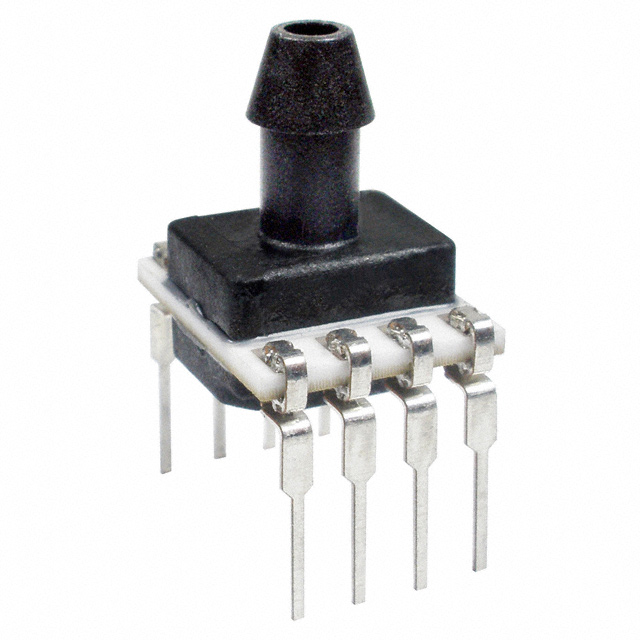

The TruStability® Standard Accuracy Silicon Ceramic SSC Series is a piezoresistive silicon pressure sensor offering a ratiometric analog output for reading pressure over the specified full scale pressure span and temperature range.
The SSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit ASIC. Calibrated output values for pressure are updated at approximately 1 kHz.
额定电压DC 5.00 V
输出电压 0.5V ~ 4.5V
供电电流 2 mA
工作温度Max 85 ℃
工作温度Min -20 ℃
精度 ±0.25 %
额定电压 5 V
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 8
封装 DIP-8
高度 13.75 mm
封装 DIP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 板式安装
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 9026204000
