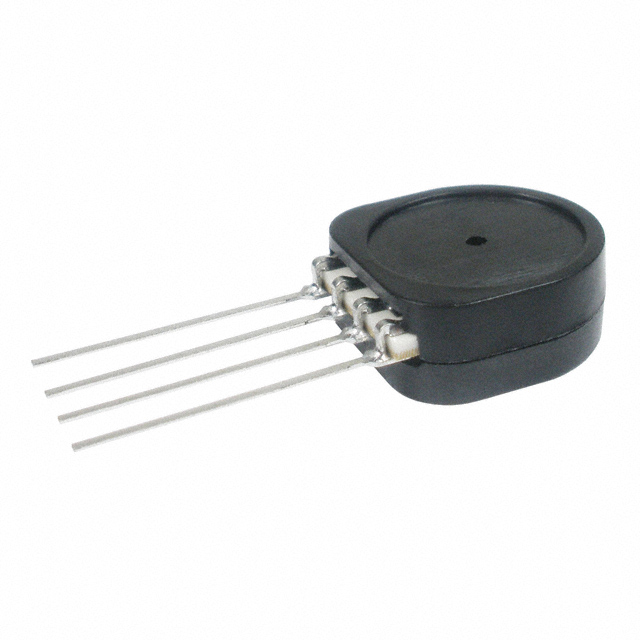

Pressure Sensor 0.5V to 4.5V 0psi to 100psi Gage 4Pin SIP
排气式压力计 压力 100PSI(689.48kPa) - 0.5V ~ 4.5V 4-SIP 模块
得捷:
SENSOR 100PSIG 4.5V 4SIP
立创商城:
SSCSSNN100PGAA5
艾睿:
Easily measure and respond to gas or liquid pressure changes within your device with this SSCSSNN100PGAA5 board mount pressure sensor from Honeywell. It has a voltage of 0.5 to 4.5 V. This device&s;s minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its operating pressure range is 0psi to 100psi, while its maximum overload pressure is 250psi. It has a response time of 1 ms. This part&s;s ESD protection device has a maximum ESD protection device voltage of 3Min @ HBM kV.
Allied Electronics:
TruStability
Chip1Stop:
Pressure Sensor 0.5V to 4.5V 0psi to 100psi Gage 4-Pin SIP
Verical:
Pressure Sensor 0.5V to 4.5V 0psi to 100psi Gage Medical 4-Pin SIP Module
Newark:
# HONEYWELL SSCSSNN100PGAA5 Pressure Sensor, Trustability, Analogue, 100 psi, Gauge, 5 V, Manifold, 2 mA
MASTER:
TruStability® Board Mount Pressure Sensor - Compensated/Amplified: SSC Series, Standard Accuracy, ± 2% Total Error Band, SIP, Manifold Mount Inner Diameter Seal, 100 psi Gage, Amplified Analog Output, 10% to 90% Vdd, 5 V Supply, Dry Gases Only, No Special
Powell:
TruStability Silicon P
Online Components:
TruStability® Board Mount Pressure Sensor - Compensated/Amplified: SSC Series, Standard Accuracy, ± 2% Total Error Band, SIP, Single Radial Barbed ...
AMEYA360:
SENSOR PRESS 100PSI GAUGE 5V SIP
Win Source:
SENSOR PRESS 100PSI GAUGE 5V SIP / Pressure Sensor 100PSI 689.48kPa Vented Gauge 0.5 V ~ 4.5 V 4-SIP Module
电源电压DC 5.00 V
额定电压DC 5.00 V
输出电压 0.5V ~ 4.5V
供电电流 2 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.25 %
额定电压 5 V
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 4
封装 SIP-4
封装 SIP-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
制造应用 板式安装
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 9026204000
