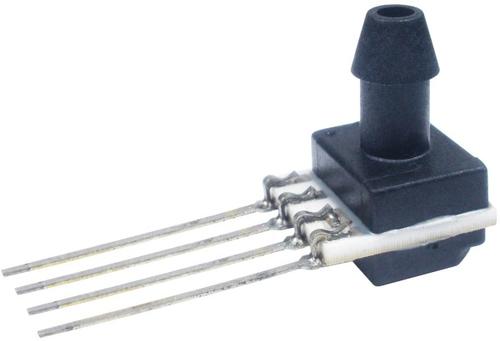

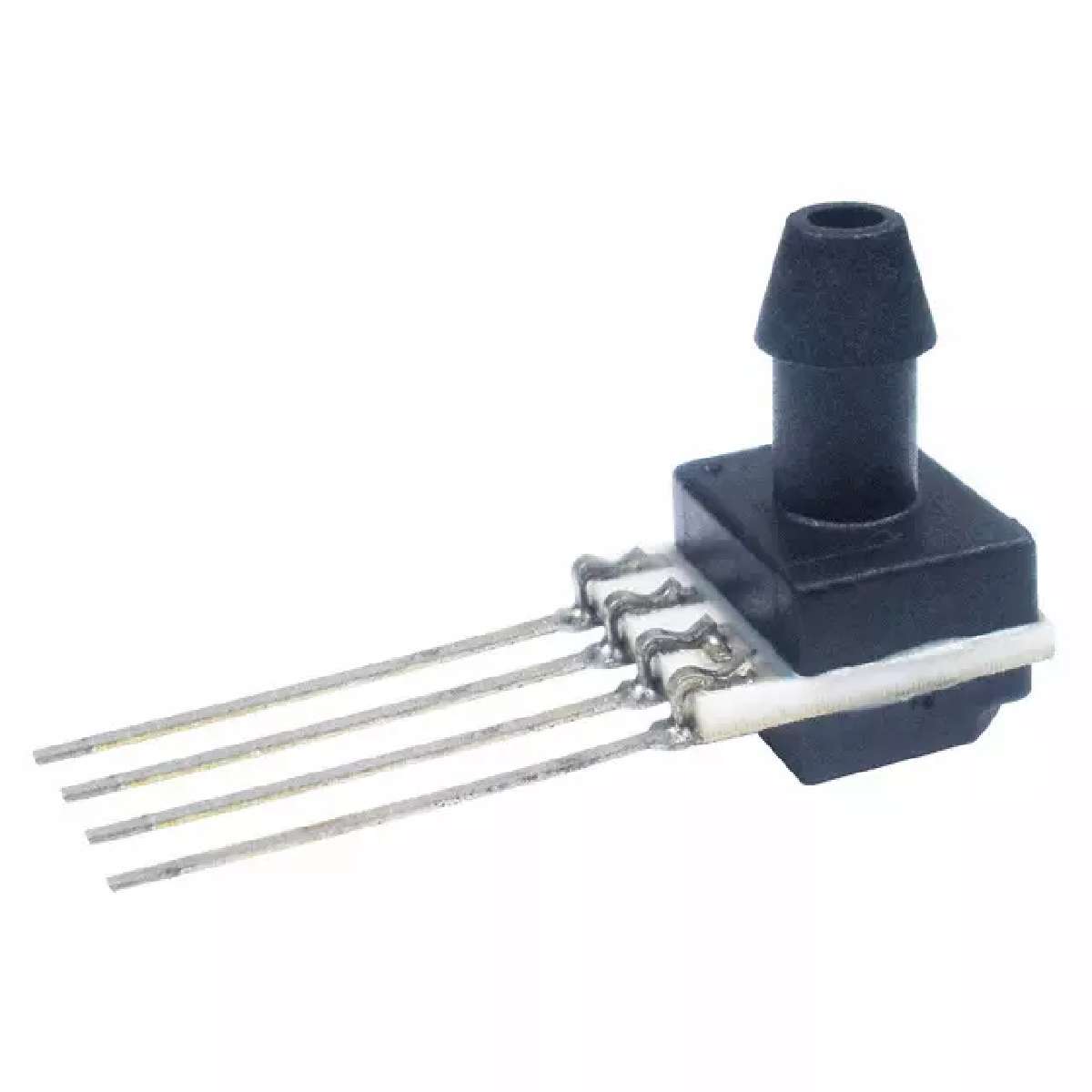

Pressure Sensor 0.33V to 2.97V 0psi to 15psi Absolute 4Pin SIP
绝对 压力 15PSI(103.42kPa) 公型 - 0.19"(4.93mm)管 0.33V ~ 2.97V 4-SIP,侧端口
得捷:
SENSOR 15PSIA 0.19" 2.97V 4SIP
艾睿:
Pressure Sensor 0.33V to 2.97V 0psi to 15psi Absolute 4-Pin SIP
Allied Electronics:
TruStability
Chip1Stop:
Pressure Sensor 0.33V to 2.97V 0psi to 15psi Absolute 4-Pin SIP
Verical:
Pressure Sensor 0.33V to 2.97V 0psi to 15psi Absolute Medical 4-Pin SIP Module
MASTER:
TruStability® Board Mount Pressure Sensor - Compensated/Amplified: SSC Series, Standard Accuracy, ± 2% Total Error Band, SIP, Single Axial Barbed Port, 15 psi Absolute, Amplified Analog Output, 10% to 90% Vdd, 3.3 V Supply, Dry Gases Only, No Special Opti
Powell:
TruStability Silicon P
Online Components:
TruStability® Board Mount Pressure Sensor - Compensated/Amplified: SSC Series, Standard Accuracy, ± 2% Total Error Band, SMT, Dual Radial Barbed ...
AMEYA360:
SENSOR PRES 15PSI ABSO 3.3V SIP
额定电压DC 3.30 V
输出电压 0.33V ~ 2.97V
供电电流 1.6 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.25 %
额定电压 3.3 V
电源电压 3V ~ 3.6V
电源电压Max 3.3 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 4
封装 SIP-4
封装 SIP-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
制造应用 板式安装
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 9026204000
