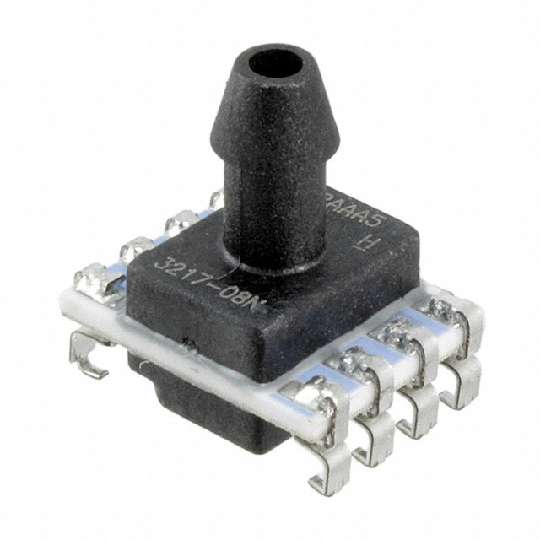

Pressure Sensor 0.5V to 4.5V 0psi to 15psi Absolute 8Pin SMT
Ensure the components within your system are safe with this board mount pressure sensor from which measures and responds to gas or liquid pressure changes. It has a voltage of 0.5 to 4.5 V. This device"s minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This part"s ESD protection device has a maximum ESD protection device voltage of 3Min @ HBM kV. Its operating pressure range is 0psi to 15psi, while its maximum overload pressure is 30psi. It has a response time of 1 ms.
额定电压DC 5.00 V
输出电压 0.5V ~ 4.5V
供电电流 2.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 0.25 %
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 8
封装 SMD-8
高度 13.75 mm
封装 SMD-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 9026204000
