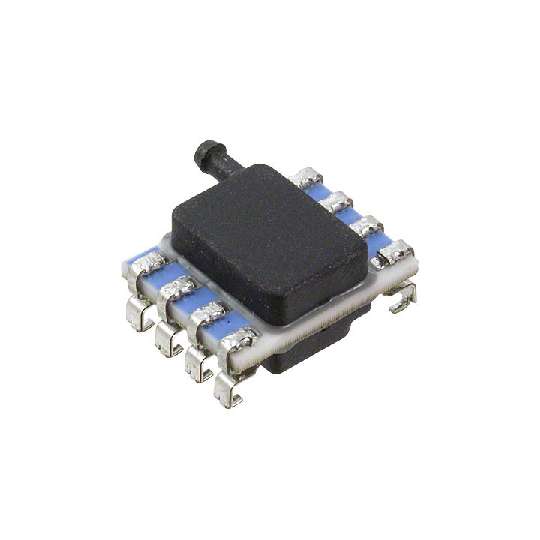

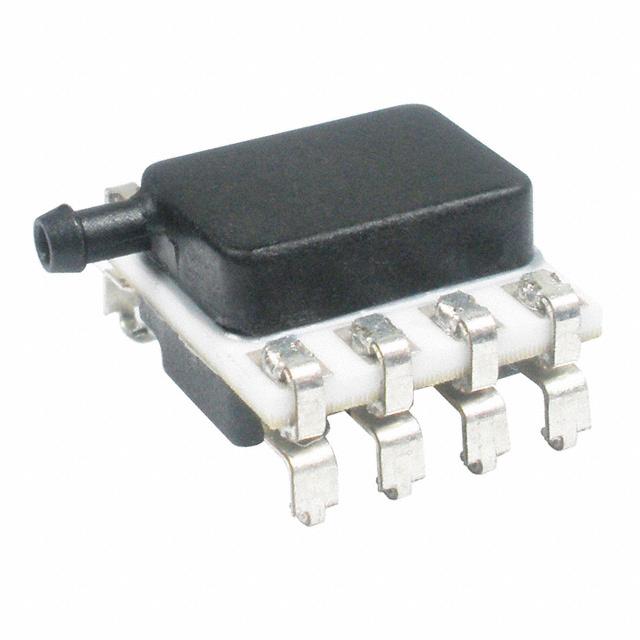

板机接口压力传感器 SMT, Sing Rad Barbed Gage, 5V
Quickly measure and respond to changes in gas or liquid pressures within your system by implementing this board mount pressure sensor from . It has a voltage of 0.5 to 4.5 V. This device"s minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V. This part has a temperature range of -40 °C to 85 °C. Its operating pressure range is 0bar to 0.1bar, while its maximum overload pressure is 0.5bar. It has a response time of 1 ms. This part has a maximum ESD protection device voltage of 3Min @ HBM kV.
额定电压DC 5.00 V
输出电压 0.5V ~ 4.5V
供电电流 2 mA
工作温度Max 85 ℃
工作温度Min -20 ℃
精度 ±0.25 %
额定电压 5 V
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 8
封装 SMD-8
封装 SMD-8
工作温度 -40℃ ~ 85℃
产品生命周期 Discontinued at Digi-Key
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 9026204000
