SSCMANN006BGAA3

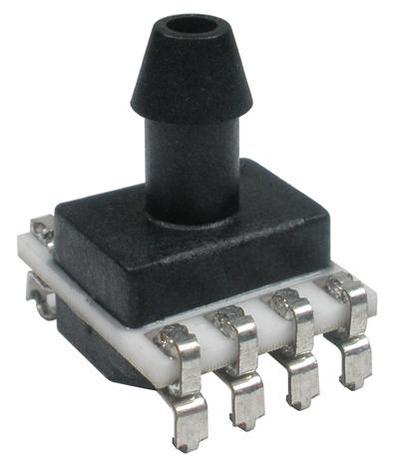

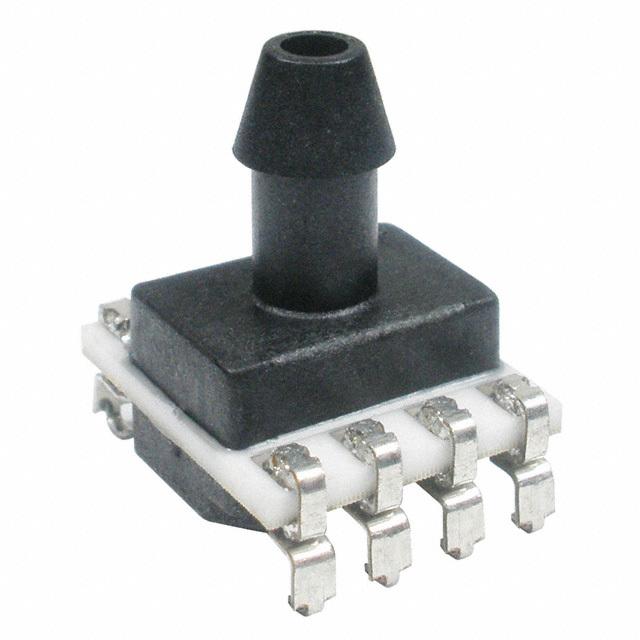

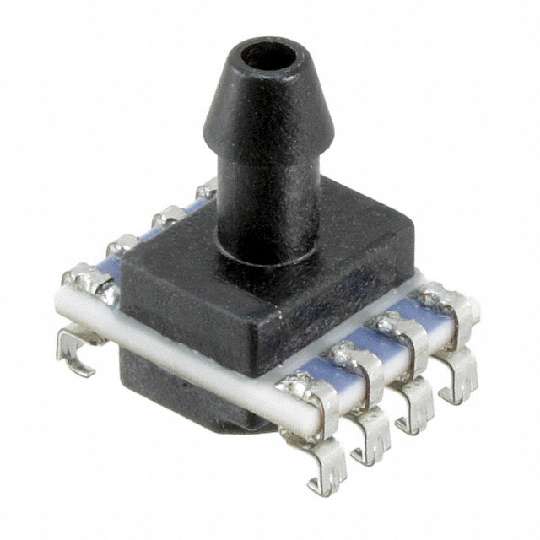

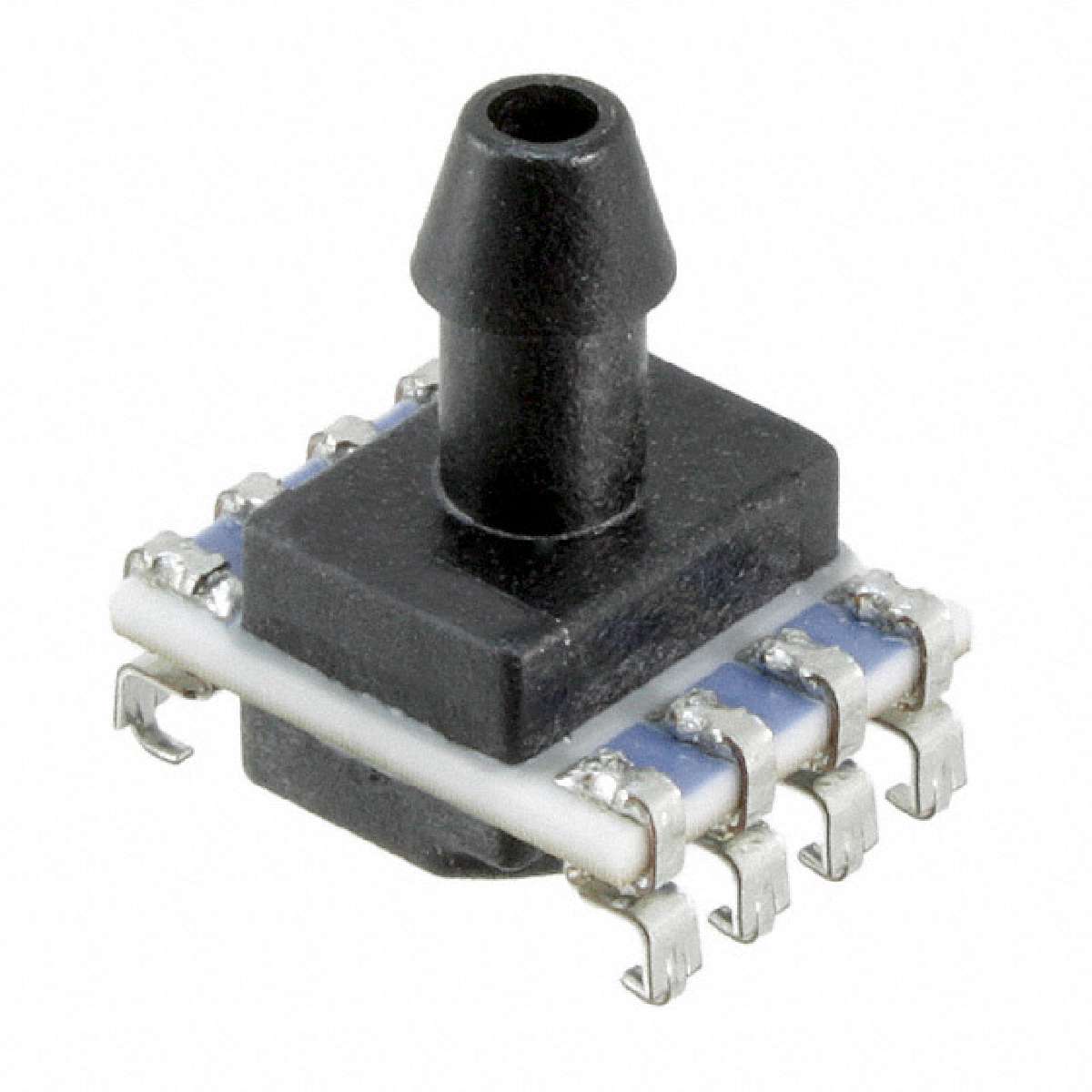

TruStability® Board Mount Pressure Sensor - Compensated/Amplified: SSC Series, Standard Accuracy, ± 2% Total Error Band, DIP, Dual Radial Barbed Ports, Same Side, 5psi Gage, Amplified Analog Output, 10% to 90% Vdd, 5V Supply, Dry Gases Only, No Special Options

Ensure the components within your system are safe with this board mount pressure sensor from which measures and responds to gas or liquid pressure changes. It has a voltage of 0.33 to 2.97 V. This device"s minimum operating supply voltage of 3 V, while its maximum is 3.6 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a response time of 1 ms. This part"s ESD protection device has a maximum ESD protection device voltage of 3Min @ HBM kV. Its operating pressure range is 0bar to 6bar, while its maximum overload pressure is 17bar.
