Pressure Sensor 0psi to 100psi Gage 8Pin SMD
The SXP SMT Series provides a most cost-effective method of measuring absolute and gauge pressures in a fully packaged sensor. These sensors are designed primarily for use with clean, dry gases such as air and nitrogen.

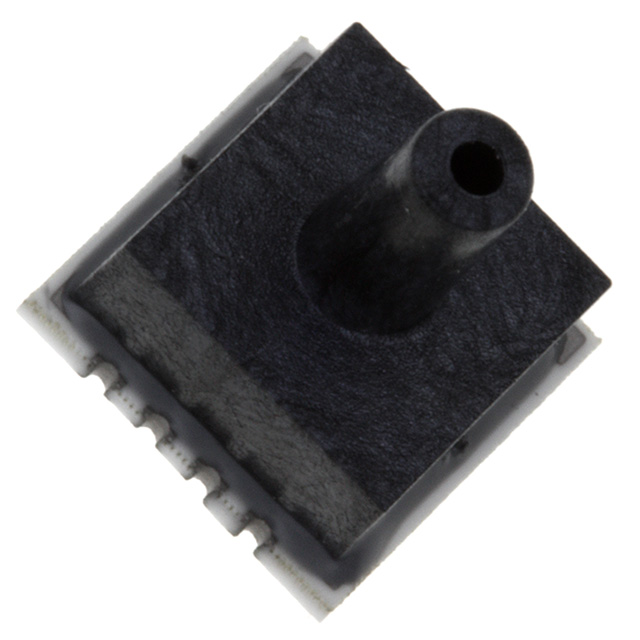

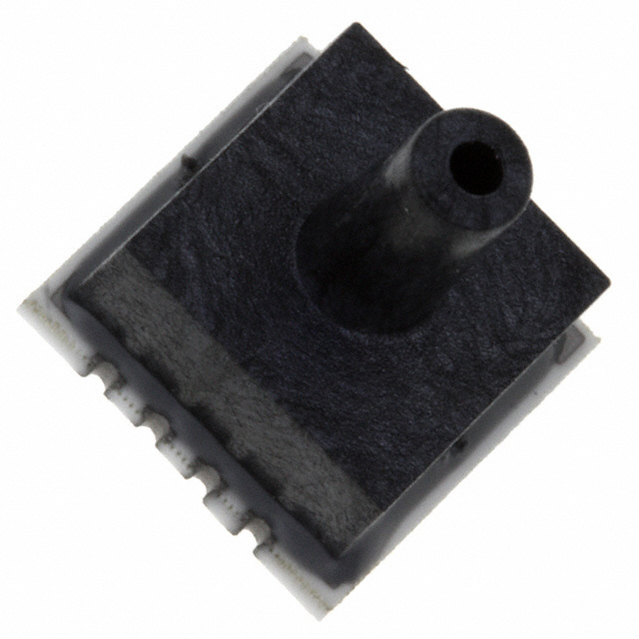

This Series features the standard SX chip in a ceramic, surface mount package. The standard version features a low profile plastic lid to better withstand high temperatures. The optional ported device offers a tube attachment port that is particularly useful in gauge applications.
The 4-pin closed bridge configuration allows electrical connection with additional pads provided for mechanical support. Pulsed power is recommended to achieve maximum accuracy and conserve battery power in portable applications.
**Features:**
* Small Size
* Internal Temperature Compensation
* Absolute or Gauge Pressures
* High-Impedance Bridge
* Low-Power Consumption
