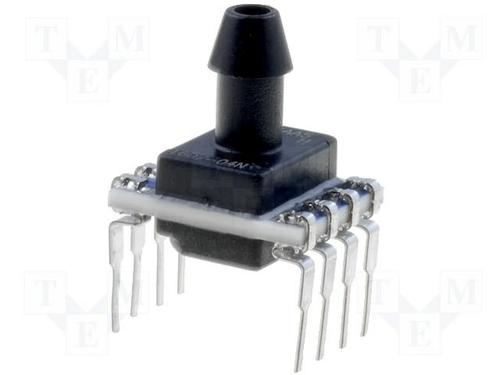

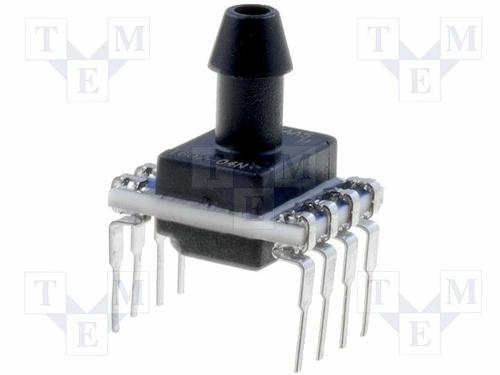

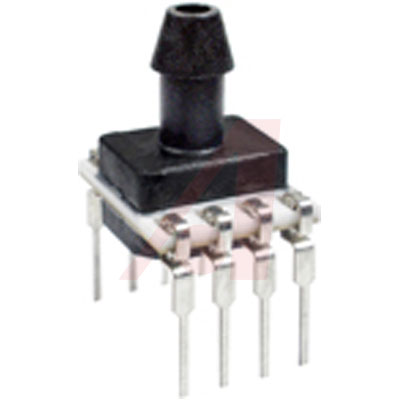

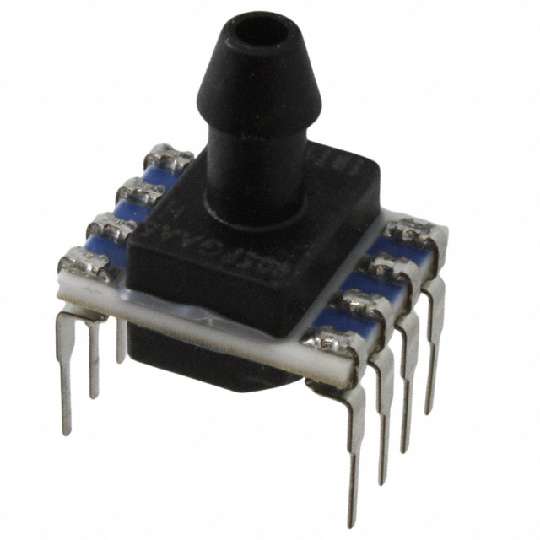

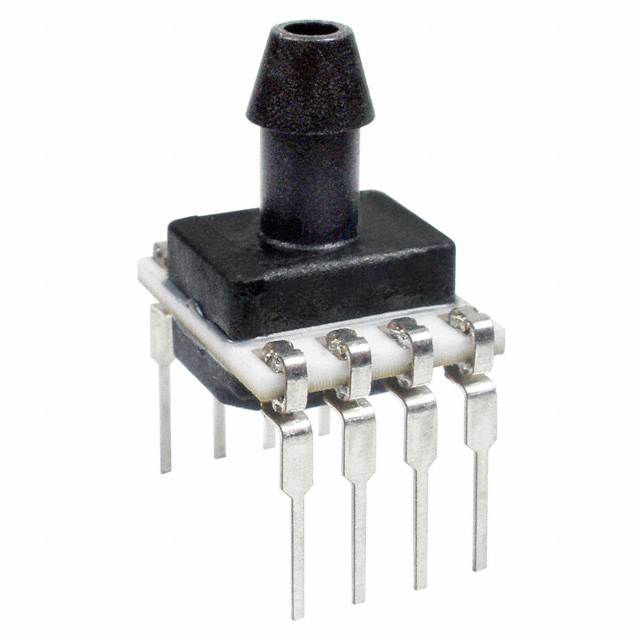

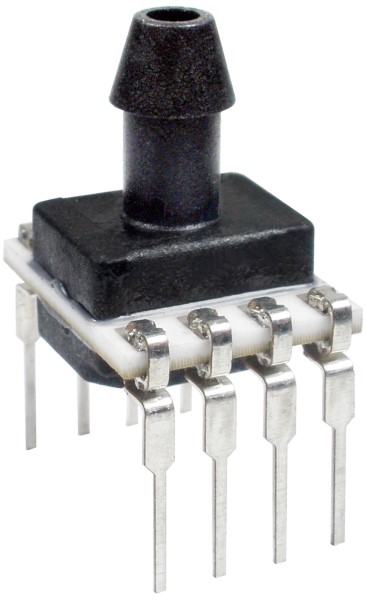

SSCDANT005PGAA5

TruStability® Board Mount Pressure Sensor - Compensated/Amplified: SSC Series, Standard Accuracy, ± 2% Total Error Band, DIP, Single Axial Barbed Port, 15psi Gage, SPI Output, 10% to 90% Vdd, 3.3V Supply, Dry Gases Only, No Special Options

The TruStability® Standard Accuracy Silicon Ceramic SSC Series is a piezoresistive silicon pressure sensor offering a ratiometric analog output for reading pressure over the specified full scale pressure span and temperature range.

The SSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit ASIC. Calibrated output values for pressure are updated at approximately 1 kHz.
