总误差带扩音补偿模拟输出, 1psito 150PSI 60mbar 10条 Total Error Band Amplified Compensated Analog Output, 1psito 150psi 60mbar 10 bar
差分 压力 ±15PSI(±103.42kPa) 公型 - 0.19"(4.8mm)双管 0.5V ~ 4.5V 4-SIP、双端口,同侧
欧时:
Diff Pressure Sensor,SIP,15psi
得捷:
SENSOR 15PSID 0.19" 4.5V 4SIP
立创商城:
SSCSNBN015PDAA5
艾睿:

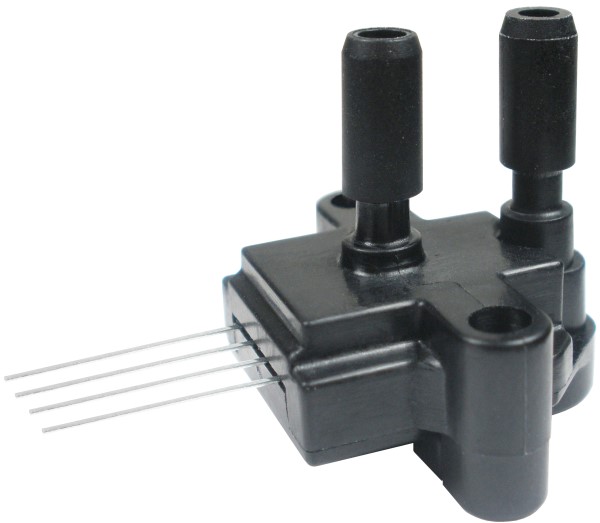

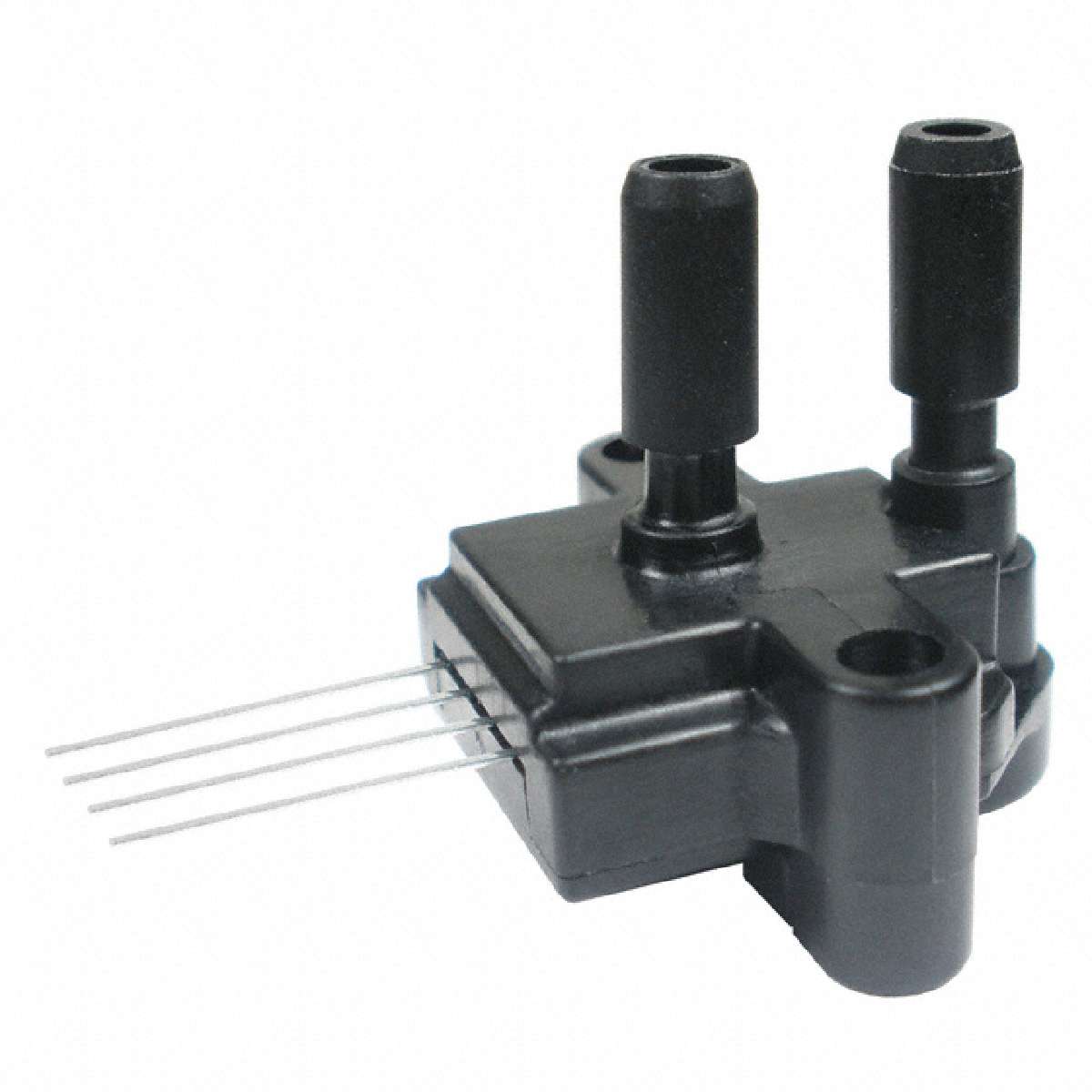

This SSCSNBN015PDAA5 board mount pressure sensor from Honeywell is designed to test the specific pressure of a physical medium, usually a type of gas or liquid, as well as any changes in pressure from direct contact. It has a voltage of 0.5 to 4.5 V. This device&s;s minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V. This part has a temperature range of -40 °C to 85 °C. This part has a maximum ESD protection device voltage of 3Min @ HBM kV. Its operating pressure range is -15psi to 15psi, while its maximum overload pressure is 30psi. It has a response time of 1 ms.
Allied Electronics:
TruStability
Chip1Stop:
Pressure Sensor 0.5V to 4.5V -15psi to 15psi Differential 4-Pin SIP
Newark:
# HONEYWELL SSCSNBN015PDAA5 Pressure Sensor, Trustability, Analogue, 15 psi, Differential, 5 V, Axial, 2 mA
MASTER:
TruStability® Board Mount Pressure Sensor - Compensated/Amplified: SSC Series, Standard Accuracy, ± 2% Total Error Band, SIP, Fastener Mount Dual Axial Ports, Same Side, 15 psi Differential, Amplified Analog Output, 10% to 90% Vdd, 5 V Supply, Dry Gases O
Powell:
TruStability Silicon P
Win Source:
SENSOR PRESS 15PSI DIFF 5V SIP / Pressure Sensor ±15PSI ±103.42kPa Differential Male - 0.19" 4.8mm Tube, Dual 0.5 V ~ 4.5 V 4-SIP, Dual Ports, Same Side
电源电压DC 5 V
额定电压DC 5.00 V
输出电压 0.5V ~ 4.5V
供电电流 2 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±0.25 %
额定电压 5 V
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 4
封装 SIP-4
封装 SIP-4
工作温度 -20℃ ~ 85℃
产品生命周期 Active
制造应用 板式安装
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 9026204000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SSCSNBN015PDAA5 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
SSCDRRN015PDAA5 霍尼韦尔 | 功能相似 | SSCSNBN015PDAA5和SSCDRRN015PDAA5的区别 |
XCA415DN 霍尼韦尔 | 功能相似 | SSCSNBN015PDAA5和XCA415DN的区别 |
