微压力传感器精度补偿0在H 2 O 4在H 2 O和0的H 2 O至10在H 2 O中 Microstructure Pressure Sensors Precision Compensated 0 in H2O to 4 in H2O and 0 in H2O to 10 in H2O

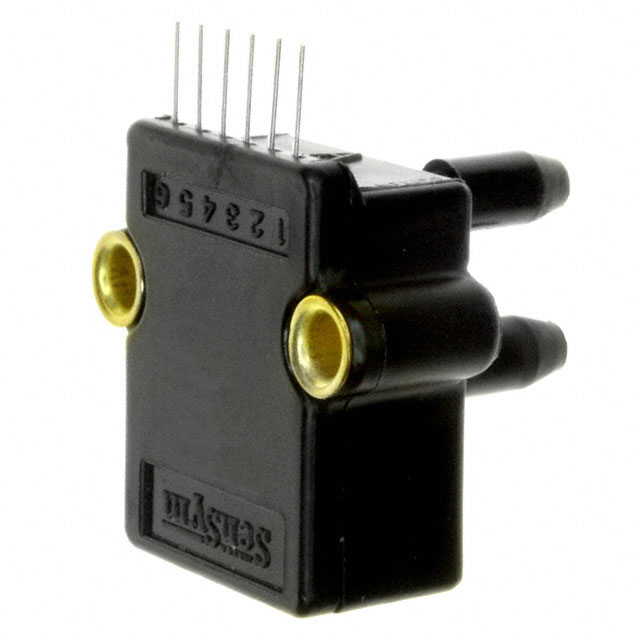

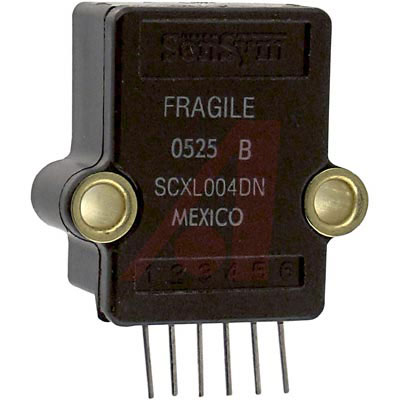

The SCX Series sensors provide a very cost-effective solution for pressure applications that require operation over wide temperature range. These internally calibrated and temperature compensated sensors were specifically designed to provide an accurate and stable output over a 0°C to +70°C 32°F to +158°F temperature range. This Series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. Devices are available to measure absolute, differential and gage pressures from 1 psi SCX01 up to 150 psi SCX150. The Absolute A in model number devices have an internal vacuum reference and an output voltage proportional to absolute pressure. The Differential D in model number devices allow application of pressure to either side of the pressure-sensing diaphragm and can be used for gage or differential measurements. The SCX Series devices feature an integrated circuit IC sensor element and laser trimmed thick film ceramic housed in a compact solvent resistant case. This package provides excellent corrosion resistance and provides isolation to external packaging stresses. The package has convenient mounting holes and pressure ports for ease of use with standard plastic tubing for pressure connection. If the application requires extended temperature range operation, beyond 0°C to +70°C +32°F to +158°F, two pins which provide an output voltage proportional to temperature are available for use with external circuitry. The 100 μS response time makes this series an excellent choice for computer peripherals and pneumatic control applications. The output of the bridge is ratiometric to the supply voltage. Operation from any DC supply voltage up to 20 VDC is acceptable.
**Features:
**
* Precision Temperature Compensation
* Calibrated Zero and Span
* Small Size
* Low Noise
* High Accuracy
* High Impedance for Low Power Applications
**Typical Applications:**
* Medical Equipment
* Barometry
* Computer Peripherals
* Pneumatic Controls
* HVAC
