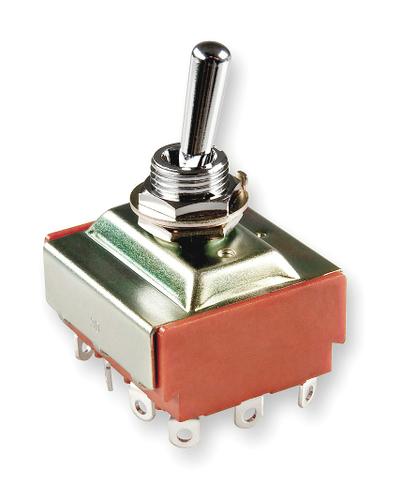

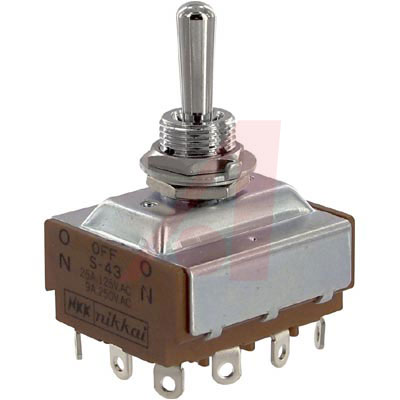

NKK SWITCHES S43 拨动开关, 4PDT, 25A, 125VAC

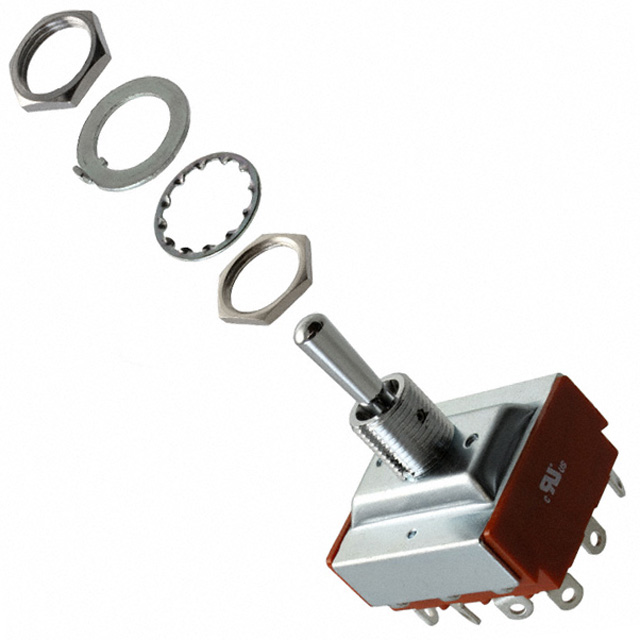

Standard size toggles with zinc plated steel covers are sturdily built. The 12mm bushing, with included mounting hardware, fits most panel mount applications. Up to 4 poles with 6 circuits are available. Heat tolerant resin case provides high arc resistance. Long life contact mechanisms in these models assures long life. Solder lug, screw lug, and quick connect terminals are available.
贸泽:
拨动开关 4PDT ON-OFF-ON SOLDER LUG
e络盟:
开关, 拨动, 4PDT, 25A, 125VAC
艾睿:
Control the status of your project with this medium/high capacity S43 toggle switch from NKK Switches. This device has a maximum current rating of 25 A @ 125VAC. It has a 4PDT configuration. This toggle switch has a minimum operating temperature of -10 °C and a maximum of 70 °C. The S43 toggle switch has a solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 34.2 mm long, 56.6 mm tall and 36.5 mm deep.
Allied Electronics:
Switch; Standard Size Toggle; Solder Lug Terminals; 4PDT; On-Off-On
富昌:
S 系列 双刀双掷 开-关-开 焊片 中等/高容量 钮子开关
Chip1Stop:
Switch Toggle ON OFF ON 4PDT Bat Lever Solder Lug 25A 250VAC 30VDC Panel Mount with Threads
Verical:
Switch Toggle ON OFF ON 4PDT Bat Lever Solder Lug 25A 250VAC 30VDC Panel Mount with Threads
Newark:
Toggle Switch, 4PDT, Non Illuminated, On-Off-On, Panel, 25 A
触点电镀 Silver
额定电压DC 30 V
接触器类型 Standard
额定电压AC 125 V
额定电流 25 A
绝缘电阻 1000 MΩ
方向 Vertical
触点类型 4PDT
针脚数 3
额定电流Max 25A @125VAC
工作温度Max 70 ℃
工作温度Min -10 ℃
额定电压 30 V
接触电阻Max 10 mΩ
安装方式 Panel, Solder Lug
长度 36.5 mm
宽度 34.2 mm
高度 56.6 mm
触点材质 Silver
工作温度 -10℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
