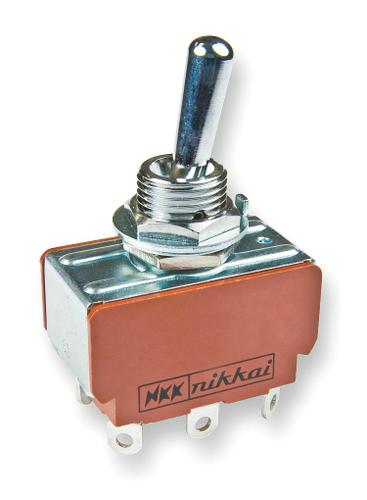

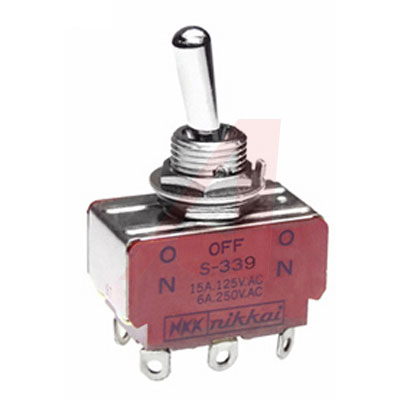

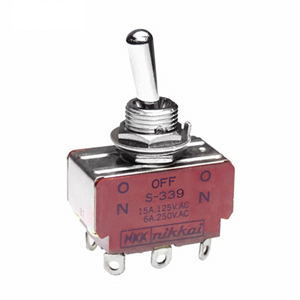

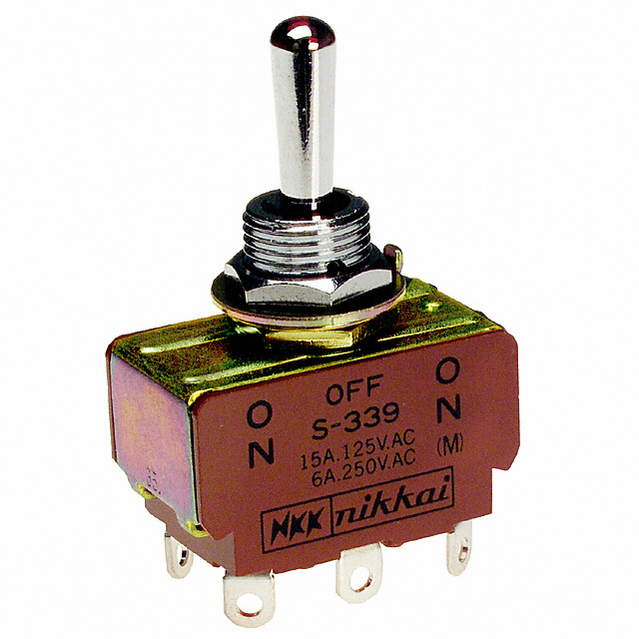

NKK SWITCHES S339 拨动开关, DPDT, 20A, 250VAC
Series S low capacity standard size toggle switches employ chrome plated brass, steel and phenolic resin in the right places to produce a long lasting lightweight switch. If needed, add "/C" to end of part number to order CSA mark on switch.
Standard size toggles with zinc plated steel covers are sturdily built. The 12mm bushing, with included mounting hardware, fits most panel mount applications. Up to 4 poles with 6 circuits are available. Heat tolerant resin case provides high arc resistance. Long life contact mechanisms in these models assures long life. Solder lug, screw lug, and quick connect terminals are available.
触点电镀 Silver
额定电压DC 30 V
接触器类型 Standard
额定电压AC 125 V
额定电流 15 A
方向 Vertical
触点类型 DPDT
额定电流Max 20A @30VDC
工作温度Max 70 ℃
工作温度Min -10 ℃
额定电压 125 VAC
接触电阻Max 10 mΩ
安装方式 Panel, Solder Lug
长度 33.2 mm
宽度 19 mm
高度 54.6 mm
产品生命周期 25000 Cycles
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
