HONEYWELL SPS-L075-HALS 传感器, 智能定位器, 75MM

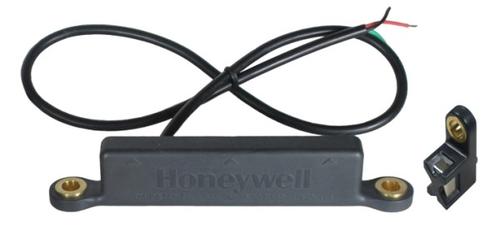

The is a SMART Position Sensor, one of the most durable, adaptable and lightweight linear position sensor available in the industry, enabling highly accurate motion control and improving operation efficiency and safety. Its simple, non-contact design eliminates mechanical failure mechanisms, reducing wear and tear, improving reliability and durability and minimizing downtime. It is a non-contacting sensing solution for absolute position sensing with enhanced accuracy. It senses the position of a magnet relative to the sensor. These sensors uses a patented combination of an ASIC Application-Specific Integrated Circuit and an array of MR magneto resistive sensors to accurately and reliably determine the position of a magnet attached to a moving object so that the objects position can be determined or controlled.
电源电压DC 6V ~ 24V
供电电流 32 mA
针脚数 3
输出电压Min 0 V
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 6 V
电源电压 6V ~ 24V
引脚数 3
封装 Thermoplastic
长度 127 mm
高度 28.2 mm
封装 Thermoplastic
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Avionics, 工业, Industrial, 传感与仪器, Sensing & Instrumentation, 航空电子
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8543704000
