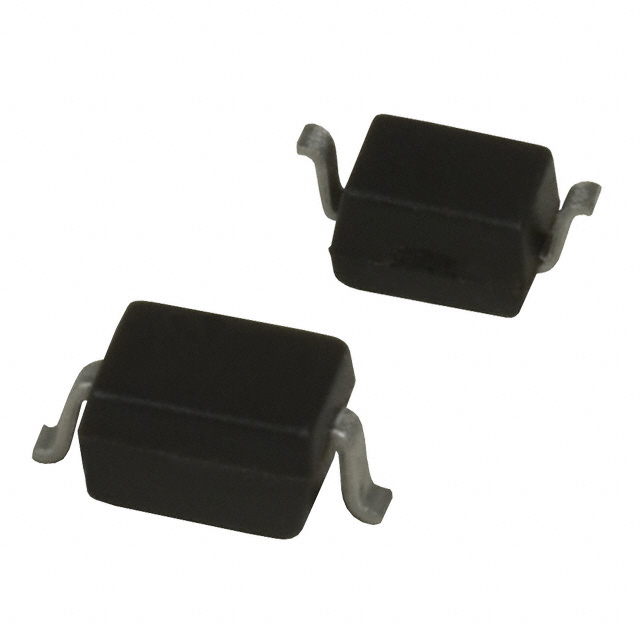

SEMTECH SD05.TCT TVS二极管, TVS, SDxx系列, 单向, 5 V, 14.5 V, SOD-323, 2 引脚
The is a single line TVS Diode for ESD protection in portable electronics. It offers superior electrical characteristics such as lower clamping voltage and no device degradation when compared to MLVs. The SDxx series TVS diode is designed to protect sensitive semiconductor components from damage or upset due to electrostatic discharge ESD and other voltage induced transient events. This device will fit on the same PCB pad area as an 0805 MLV device. It gives the designer the flexibility to protect one line in applications where arrays are not practical. Additionally, it may be sprinkled around the board in applications where board space is at a premium.
额定电压DC 5.00 V
工作电压 5 V
电容 350 pF
额定功率 350 W
击穿电压 6 V
电路数 1
针脚数 2
耗散功率 350 W
钳位电压 14.5 V
测试电流 1 mA
最大反向击穿电压 6 V
脉冲峰值功率 350 W
最小反向击穿电压 6 V
击穿电压 6 V
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-323
长度 1.80 mm
宽度 1.40 mm
高度 1 mm
封装 SOD-323
工作温度 -55℃ ~ 125℃
产品生命周期 Active

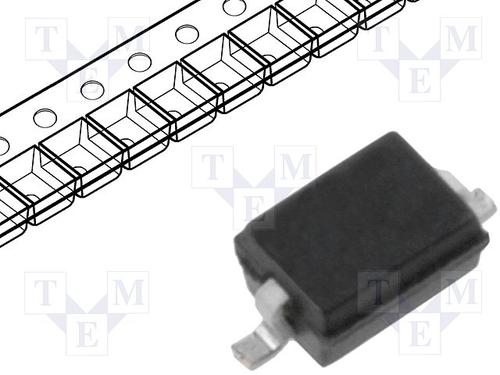

包装方式 Tape & Reel TR
制造应用 工业, Industrial, 通用, Portable Devices, 便携式器材, Computers & Computer Peripherals, 消费电子产品, Consumer Electronics, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SD05.TCT Semtech Corporation | 当前型号 | 当前型号 |
SD05T1G 安森美 | 功能相似 | SD05.TCT和SD05T1G的区别 |
PESD5V0U1UA,115 恩智浦 | 功能相似 | SD05.TCT和PESD5V0U1UA,115的区别 |
PESD5V0S1UA,115 恩智浦 | 功能相似 | SD05.TCT和PESD5V0S1UA,115的区别 |
