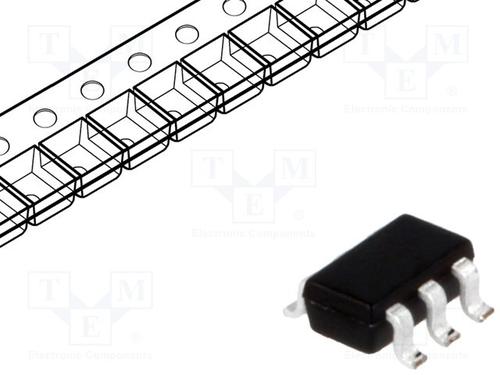

SMS 系列 23 V 150 pF TVS 二极管阵列 用于 ESD 和闩锁保护 - SOT-23-6L
ESD Suppressor TVS 12V 6-Pin SOT-23 T/R
立创商城:
Vrwm:12V@Max 350W
得捷:
TVS DIODE 12VWM 23VC SOT23-6
艾睿:
Even low voltage discharges can cause damage to electronic components so get this tvs SMS12.TCT ESD protection device from Semtech for added protection. This device&s;s maximum clamping voltage is 23 V. This ESD diode has a maximum ESD protection device voltage of 25@Air Gap/20@Contact Disc kV. This ESD diode has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a quad common anode configuration.
Chip1Stop:
ESD Suppressor TVS 25KV 6-Pin SOT-23 T/R
TME:
Diode: transil array; 13.3V; 15A; bidirectional; 350W; SOT223-6
Verical:
ESD Suppressor Diode TVS Uni-Dir 12V 6-Pin SOT-23 T/R
Newark:
# SEMTECH SMS12.TCT ESD Protection Device, TVS, 9.8 V, SOT-23, 6 Pins, 12 V, 350 W
Online Components:
ESD Suppressor TVS 12V 6-Pin SOT-23 T/R
Win Source:
TVS DIODE 12VWM 23VC SOT23-6
额定电压DC 12.0 V
工作电压 12 V
电容 150 pF
额定功率 350 W
击穿电压 13.3 V
电路数 4
耗散功率 350 W
钳位电压 23 V
测试电流 1 mA
脉冲峰值功率 350 W
最小反向击穿电压 13.3 V
击穿电压 13.3 V
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 6
封装 SOT-23-6
长度 2.90 mm
宽度 1.60 mm
高度 1.15 mm
封装 SOT-23-6
工作温度 -55℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMS12.TCT Semtech Corporation | 当前型号 | 当前型号 |
SMS12T1 安森美 | 类似代替 | SMS12.TCT和SMS12T1的区别 |
SMS12T1G 安森美 | 功能相似 | SMS12.TCT和SMS12T1G的区别 |
SMS12 Semtech Corporation | 功能相似 | SMS12.TCT和SMS12的区别 |
