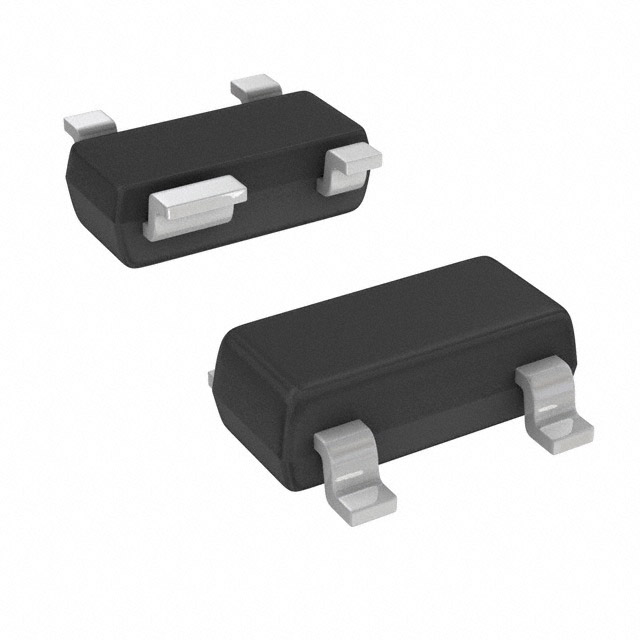

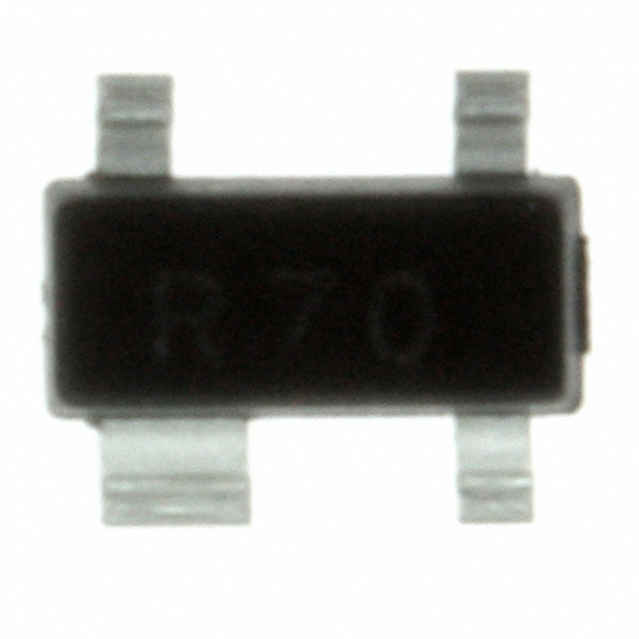

SEMTECH SR70.TCT 静电保护装置, TVS, 7 V, SOT-143, 4 引脚
极性Polarization| 双向 Bidirectional
\---|---
反向关断电压/工作电压VRWMReverse Standoff Voltage| 70V
反向击穿电压VBRBreakdown Voltage| 85V
峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation|
峰值脉冲电流IPPmPeak Forward Surge Current| 24A
额定耗散功率PdPower dissipation|
Description & Applications| Features •Low Capacitance TVS Diode Array •ESD protection to IEC 61000-4-2 ESD ±15kV air, ±8kV contact IEC 61000-4-4 EFT 40A 5/50ns •Array of surge rated diodes with internal •EPD TVS diode •Protects two I/O lines •Low capacitance <10pF for high-speed interfaces •Low leakage current < 1µA •Low operating voltage: 2.8V •Solid-state technology Applications •Firewire •Sensitive Analog Inputs •Video Line Protection •Portable Electronics •Microcontroller Input Protection •WAN/LAN Equipment
描述与应用| 特点 •低电容TVS阵列•ESD保护 IEC61000-4-2(ESD)±15kV(空气),±8kV(接触) IEC61000-4-4(EFT)40A(5/50ns) •额定浪涌阵列内部的二极管 •环保署 •保护两个I / O线 •低电容(<10pF的)高速接口 •低漏电流(<1μA) •低工作电压:2.8V •固态技术 应用 •火线 •敏感的模拟输入 •视频线路保护 •便携式电子产品 •微控制器输入保护 •广域网/局域网设备
额定电压DC 70.0 V
工作电压 70 V
电容 5 pF
击穿电压 85 V
电路数 2
通道数 2
针脚数 4
钳位电压 7 V
测试电流 0.05 mA
最小反向击穿电压 85 V
击穿电压 85 V
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 4
封装 TO-253-4
长度 3.04 mm
宽度 1.40 mm
高度 1.1 mm
封装 TO-253-4
工作温度 -55℃ ~ 125℃ TJ
产品生命周期 Active

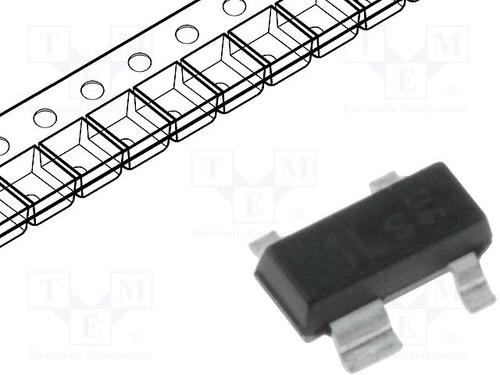

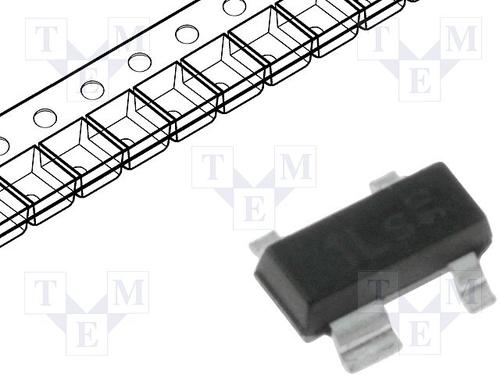

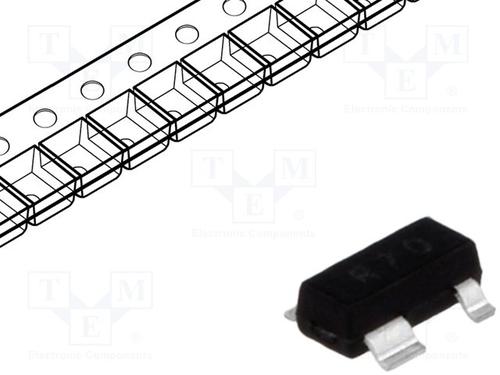

包装方式 Tape & Reel TR
制造应用 Industrial, Portable Devices, 通信, 成像, Computers & Computer Peripherals, 通用, 便携式器材, 通, 计算机和计算机周边, Computers & Computer Peripherals, Communications & Networking, Imaging, Video & Vision,
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SR70.TCT Semtech Corporation | 当前型号 | 当前型号 |
CD143A-SR70 伯恩斯 | 功能相似 | SR70.TCT和CD143A-SR70的区别 |
SR70-02CTG 力特 | 功能相似 | SR70.TCT和SR70-02CTG的区别 |
SR70.TC Semtech Corporation | 功能相似 | SR70.TCT和SR70.TC的区别 |
