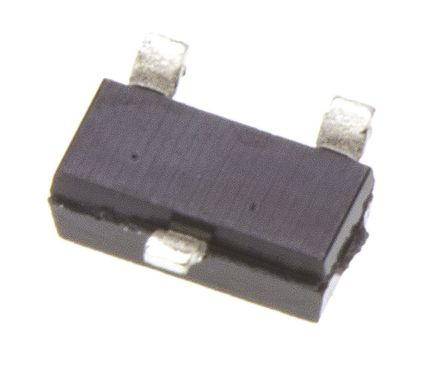

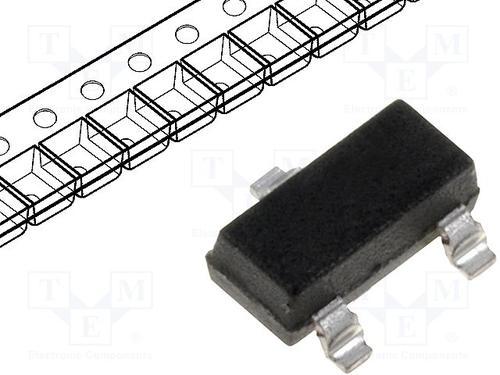

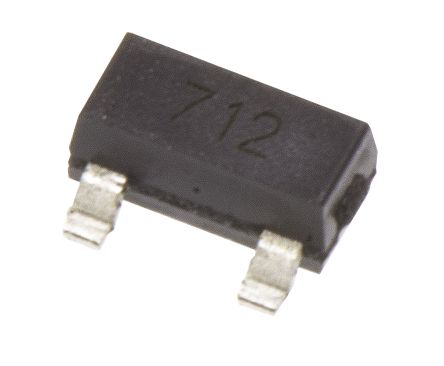

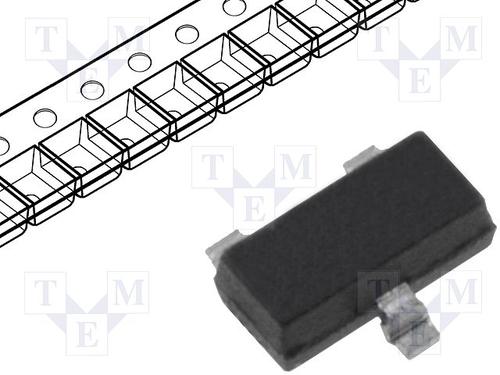

SM712.TCT

SEMTECH  SM712.TCT  TVS二极管, TVS, SM系列, 双向, 12 V, 26 V, SOT-23, 3 引脚

The is a Transient Voltage Suppressor TVS Diode, designed for asymmetrical protection in multi-point data transmission standard RS-485 applications. The SM712 may be used to protect devices from transient voltages resulting from electrostatic discharge ESD, electrical fast transients EFT and lightning. The SM712 features 400 Watts tp = 8/20µs of power handling capability to accommodate the higher transient voltage levels which may be expected in extended common mode applications. This provides higher equipment reliability and eliminates the guess work required when using zener diodes that are not rated to handle such transient conditions.

.

Low Capacitance

.

Low Clamping Voltage

.

Solid-state Silicon Avalanche Technology

.

Integrated Design Aids in Reducing Voltage Overshoot Associated with Trace Inductance

.

Low Clamping Voltage of SM712 Minimizes Stress on Protected Transceiver

ESD sensitive device, take proper precaution while handling the device.
