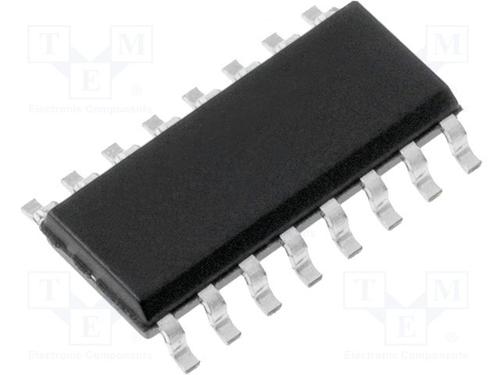

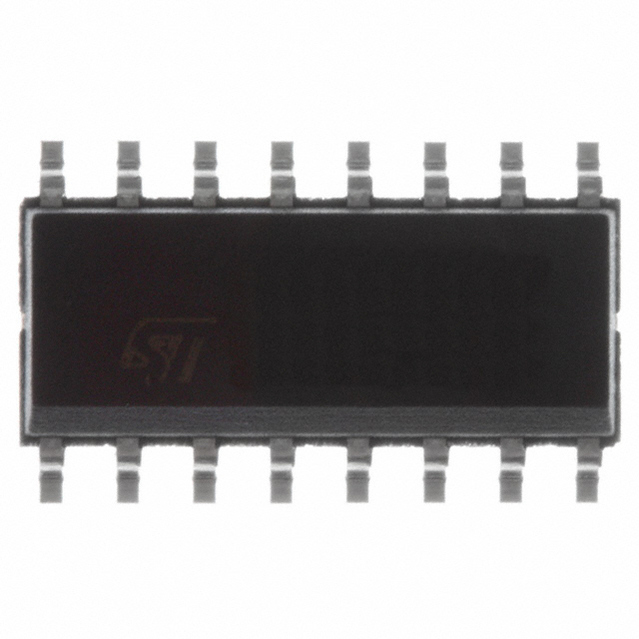

STMICROELECTRONICS STP08DP05MTR 发光二极管驱动器, 8输出, 恒流, 3V-5.5V输入, 30MHz开关, 20V/100mA输出, NSOIC-16
The is a 8-bit low-voltage constant current LED Sink with full outputs error detection. The monolithic low voltage/low current shift register designed for LED panel displays. It contains a 8-bit serial-in, parallel-out shift register that feeds a 8-bit D-type storage register. In the output stage, eight regulated current sources were designed to provide 5 to 100mA constant current to drive the LEDs. The STP08DP05 is backward compatible in the functionality and footprint with STP8C/L596 and extends its functionality with open and short detection on the outputs. The detection circuit checks 3 different conditions that can occur on the output line: short to GND, short to VO or open line. The data detection results are loaded in the shift register and shifted out via the serial line output.
频率 30 MHz
输出接口数 8
输入电压DC 3.00V ~ 5.50V
输出电压 20 V
输出电流 100 mA
供电电流 13500 mA
针脚数 16
开关频率 30 MHz
输入电压Max 5.5 V
输入电压Min 3 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3V ~ 5.5V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
封装 SOIC-16
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 -, 发光二极管照明, LED Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STP08DP05MTR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STP08CP05MTR 意法半导体 | 完全替代 | STP08DP05MTR和STP08CP05MTR的区别 |
STP08CP05TTR 意法半导体 | 完全替代 | STP08DP05MTR和STP08CP05TTR的区别 |
STP08CP05B1 意法半导体 | 完全替代 | STP08DP05MTR和STP08CP05B1的区别 |
