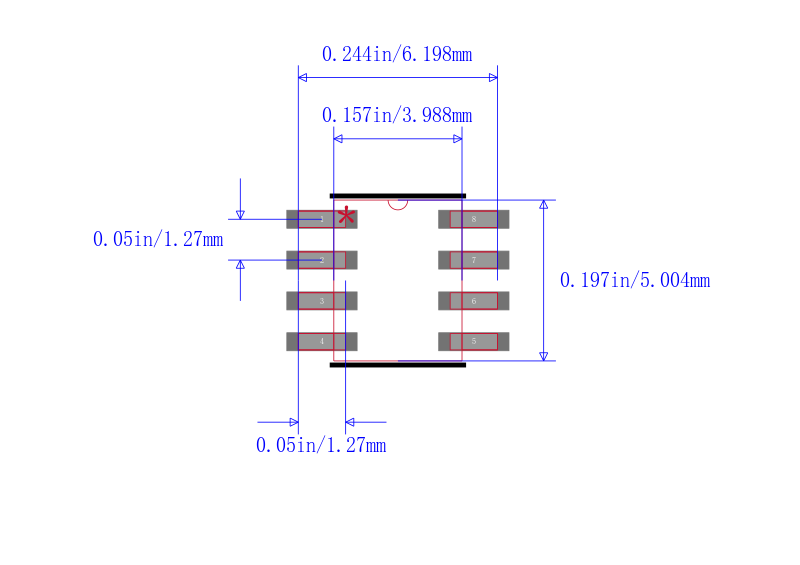

SN75LBC179DRG4

？低功耗差动线路驱动器和接收器对 LOW-POWER DIFFERENTIAL LINE DRIVER AND RECEIVER PAIRS

description

The SN65LBC179, SN65LBC179Q, and SN75LBC179 differential driver and receiver pairs are monolithic integrated circuits designed for bidirectional data communication over long cables that take on the characteristics of transmission lines. They are balanced, or differential, voltage mode devices that meet or exceed the requirements of industry standards ANSI RS-485 and ISO 8482:1987E. Both devices are designed using ’s proprietary LinBiCMOS with the low power consumption of CMOS and the precision and robustness of bipolar transistors in the same circuit.

• Designed for High-Speed Multipoint Data Transmission Over Long Cables

• Operates With Pulse Widths as Low as 30 ns

• Low Supply Current . . . 5 mA Max

• Meets or Exceeds the Standard Requirements of ANSI RS-485 and ISO 8482:1987E

• Common-Mode Voltage Range of −7 V to 12 V

• Positive- and Negative-Output Current Limiting

• Driver Thermal Shutdown Protection

• Pin Compatible With the SN75179B
