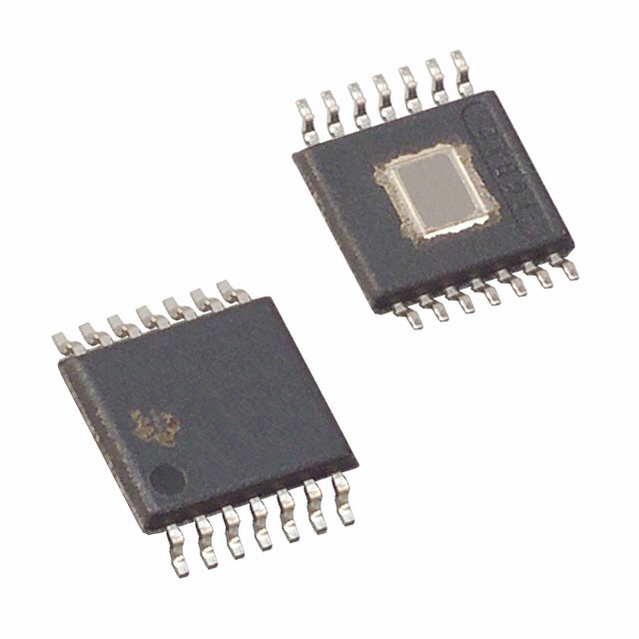

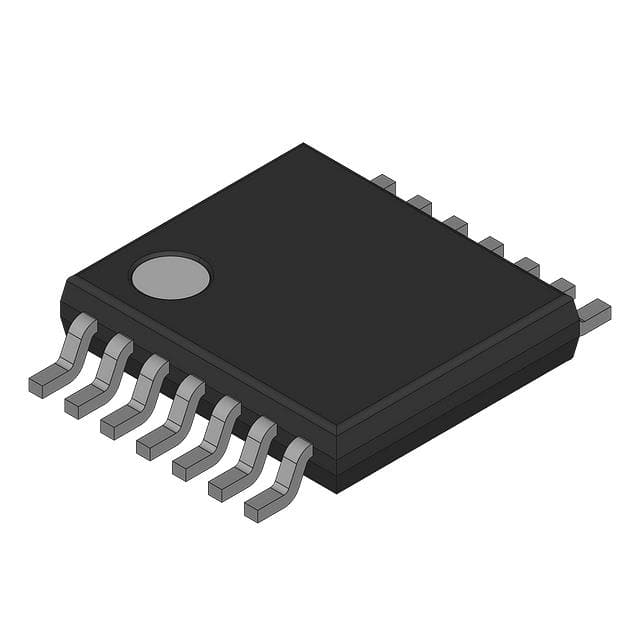

SN10503PWP

高速轨至轨输出视频放大器 HIGH SPEED RAIL TO RAIL OUTPUT VIDEO AMPLIFIERS

The SN1050x family is a set of rail-to-rail output single, dual, and triple low-voltage, high-output swing, low-distortion high-speed amplifiers ideal for driving data converters, video switching, or low distortion applications. This family of voltage-feedback amplifiers can operate from a single 15-V power supply down to a single 3-V power supply while consuming only 14 mA of quiescent current per channel. In addition, the family offers excellent ac performance with 100-MHz bandwidth, 900-V/µs slew rate and harmonic distortion THD at -78 dBc at 5 MHz.
