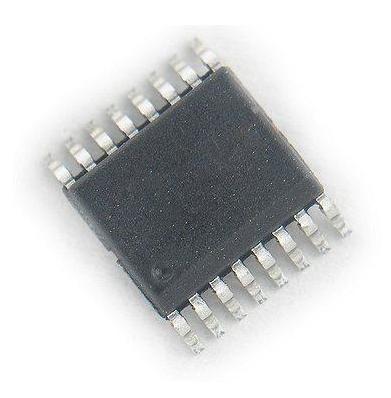

TEXAS INSTRUMENTS SN65C3221DBR 收发器, RS232, 3V-5.5电源, SSOP-16
The is a RS-232 single-channel compatible Line Driver/Receiver consist of one line driver, one line receiver and a dual charge-pump circuit. It has ±15kV ESD protection pin-to-pin serial-port connection pins, including GND. This device provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3 to 5.5V supply. This device operates at data signalling rate up to 1Mbps and a driver output slew rate of 24 to 150V/µs. Flexible control options for power management are available when the serial port is inactive. The auto-power-down feature functions when FORCEON is low and FORCEOFF is high. During this mode of operation, if the devices do not sense a valid RS-232 signal on the receiver input, the driver output is disabled. If FORCEOFF is set low and EN is high, both the driver and receiver are shutoff and the supply current is reduced to 1µA.
电源电压DC 3.30 V, 5.00 V
供电电流 1 mA
针脚数 16
数据速率 1.00 Mbps
驱动器/包 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16
封装 SSOP-16
封装 SSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN65C3221DBR TI 德州仪器 | 当前型号 | 当前型号 |
SN65C3221EPWR 德州仪器 | 完全替代 | SN65C3221DBR和SN65C3221EPWR的区别 |
SN65C3221DB 德州仪器 | 完全替代 | SN65C3221DBR和SN65C3221DB的区别 |
SN65C3221DBRE4 德州仪器 | 完全替代 | SN65C3221DBR和SN65C3221DBRE4的区别 |
