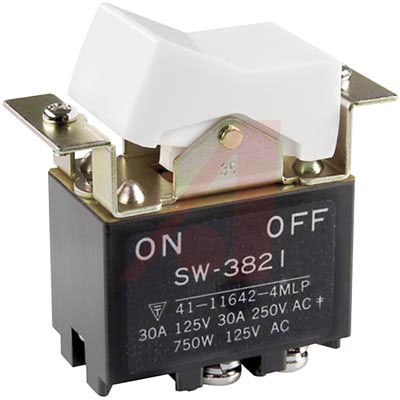

SW3821

NKK SWITCHES  SW3821  船型开关, 标准尺寸,中至高容量

Medium capacity rockers will switch resistive and inductive loads within their ratings for 25,000 operations minimum. Chromate plating over zinc plating on a steel mounting frame is corrosion resistant and physically tough, no snap-in mounts here.

欧时:
Rockers DPST,30A 125V AC SW Body

e络盟:
船型开关, 标准尺寸,中至高容量

艾睿:
Implementing this SW3821 rocker switch from NKK Switches will give the user complete control of whether your design is on or not. This device has a maximum current rating of 30 A @ 250VAC 30VDC. It has a DPST configuration. This rocker switch panel has an operating temperature range of -10 °C to 70 °C. The SW3821 rocker switch panel has a screw lug termination style. This product is 56 mm long, 57.7 mm tall and 24 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 125 VDC.

Allied Electronics:
Switch; Rocker/Paddle; DPST; 30 Amp; On-Off Scw

富昌:
SW 系列 30 A 双刀单掷 开-空-关 螺丝端子 面板安装 摇臂开关

Chip1Stop:
Switch Rocker ON None OFF DPST Screw Lug Rocker 30A 250VAC 125VDC 50000Cycles

Verical:
Switch Rocker ON None OFF DPST Screw Lug Rocker 30A 250VAC 125VDC 50000Cycles

Newark:
# NKK SWITCHES  SW3821  Rocker Switch, Non Illuminated, DPST, On-None-Off, White, Panel, 30 A
