TEXAS INSTRUMENTS SN65LBC180D 芯片, 差分线驱动器/接收器, RS485, SOIC-14
The is a low-power differential Line Driver and Receiver designed for bidirectional data communication over long cables that take on the characteristics of transmission lines. It is balanced or differential, voltage mode devices that meet or exceed the requirements of industry standard ANSI RS-485 and ISO 8482:1987E. This device is designed using s proprietary LinBiCMOS™ with the low-power consumption of CMOS and the precision and robustness of bipolar transistors in the same circuit. It combines a differential line driver and receiver with 3-state outputs and operate from a single 5V supply. The driver and receiver have active-high and active-low enables, respectively, which can be externally connected to function as a direction control. The driver differential outputs and the receiver differential inputs are connected to separate terminals for full-duplex operation and are designed to present minimum loading to the bus whether disabled or powered off VCC=0.
电源电压DC 4.75V min
供电电流 5 mA
针脚数 14
数据速率 10.0 Mbps
驱动器/包 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 14

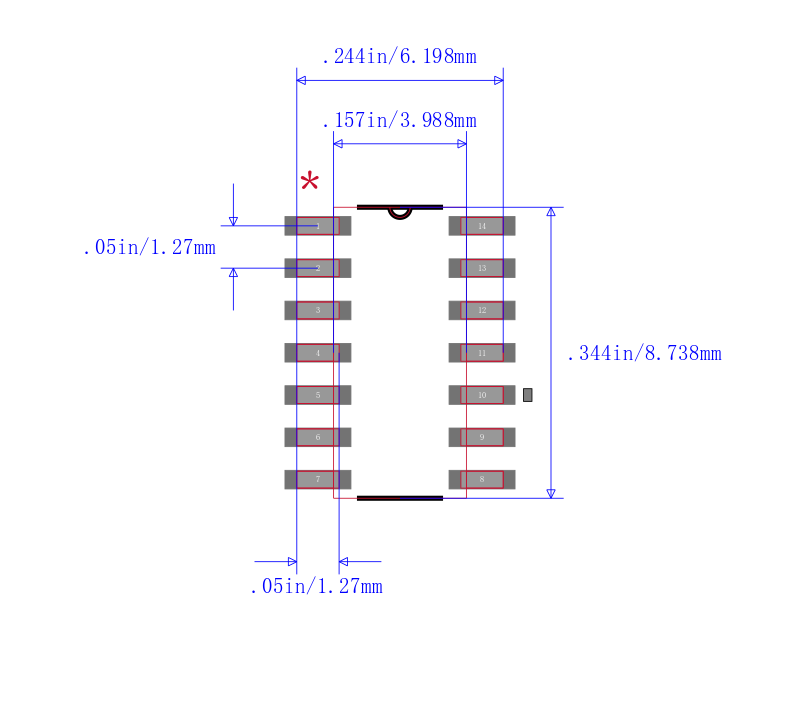

封装 SOIC-14
封装 SOIC-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN65LBC180D TI 德州仪器 | 当前型号 | 当前型号 |
SN65LBC180DR 德州仪器 | 完全替代 | SN65LBC180D和SN65LBC180DR的区别 |
SN65LBC180IDRG4Q1 德州仪器 | 完全替代 | SN65LBC180D和SN65LBC180IDRG4Q1的区别 |
SN65LBC180DRG4 德州仪器 | 完全替代 | SN65LBC180D和SN65LBC180DRG4的区别 |
