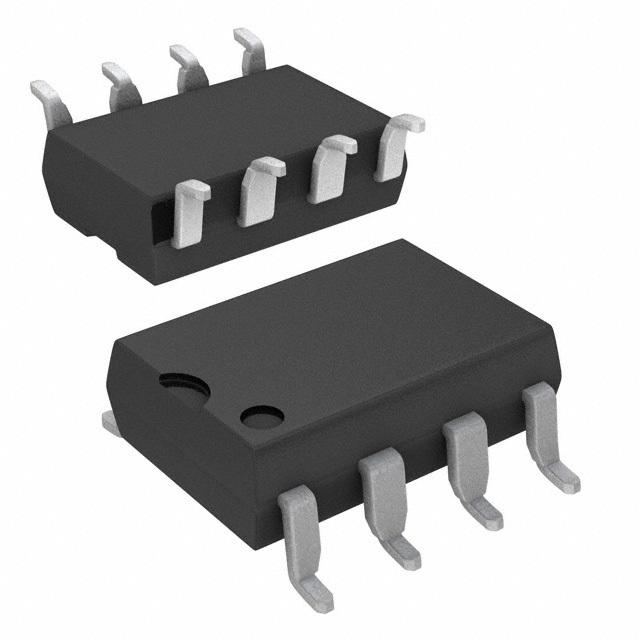

SI8716BC-A-IP

SILICON LABS  SI8716BC-A-IP  数字隔离器, 1通道, 50 ns, 2.5 V, 5.5 V, DIP, 8 引脚

The is a 5kV LED emulator input Logic Output CMOS Isolator for popular optocouplers with data rates up to 15Mbps. It isolates high-speed digital signals and offer performance, reliability and flexibility advantages not available with optocoupler solutions. The Si871x series is based on " proprietary CMOS isolation technology for low-power and high-speed operation and are resistant to the wear-out effects found in optocouplers that degrade performance with increasing temperature, forward current and device age. As a result, it offers longer service life and dramatically higher reliability compared to optocouplers.

.

High speed of DC to 15Mbps

.

Pin-compatible, drop-in upgrades for popular high-speed digital optocouplers

.

Resistant to temperature, age and forward current effects

.

10x Lower FIT rate for longer service life

.

>50kV/µs Typical higher common-mode transient immunity

.

Lower power and forward input diode current

.

Inverting and non-inverting

.

Disable output high, low or tri-state

.

Single-channel diode emulator input

.

Up to 5000VRMS isolation and 10kV surge protection

.

AEC Qualified
