双路差动驱动器和接收 DUAL DIFFERENTIAL DRIVERS AND RECEIVERS
The is a dual Differential Driver and Receiver designed for balanced multipoint bus transmission at rates up to 10Mbps. It is designed to improve the performance of full-duplex data communications over long bus lines and meet ANSI standards A/EIA-422-B and TIA/EIA-485-A and ITU recommendations V.10 and V.11. The driver outputs provide limiting for both positive and negative currents and thermal-shutdown protection from line-fault conditions on the transmission bus line. The receiver features high input impedance of at least 12kR, an input sensitivity of ±200mV over a common-mode input voltage range of -12 to 12V and typical input hysteresis of 50mV. Failsafe design ensures that if the receiver inputs are open, the receiver outputs always will be high.
电源电压DC 4.75V min
供电电流 110 mA
电路数 1
数据速率 10.0 Mbps
驱动器/包 2
工作温度Max 85 ℃
工作温度Min -20 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 16

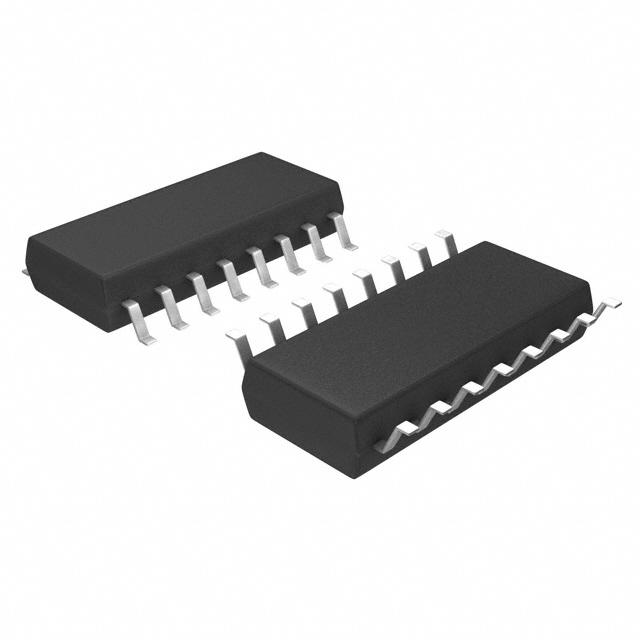

封装 SOIC-16
封装 SOIC-16
工作温度 -20℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN751178NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN751177N 德州仪器 | 完全替代 | SN751178NSR和SN751177N的区别 |
SN751178NSRE4 德州仪器 | 完全替代 | SN751178NSR和SN751178NSRE4的区别 |
SN751177NE4 德州仪器 | 功能相似 | SN751178NSR和SN751177NE4的区别 |
