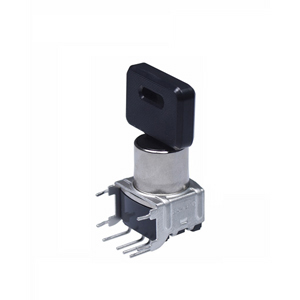

Switch Key Lock ON ON ON SP3T 45° Flat Key 0.1A 28VAC 28VDC 0.4VA PC Pins 30000Cycles Bracket Mount/Through Hole
键锁 位置 AC DC
得捷:
SWITCH KEYLK 3POS SP3T 0.4VA 28V
艾睿:
Switch Key Lock ON ON ON SP3T 45° Flat Key 0.1A 28VAC 28VDC 0.4VA PC Pins 30000Cycles Bracket Mount/Through Hole
Chip1Stop:
Switch Key Lock ON ON ON SP3T 45° Flat Key 0.1A 28VAC 28VDC 0.4VA PC Pins 30000Cycles Bracket Mount/Through Hole
Verical:
Switch Key Lock ON ON ON SP3T 45° Flat Key 0.1A 28VAC 28VDC 0.4VA PC Pins 30000Cycles Bracket Mount/Through Hole
Powell:
MINIATURE KEYLOCK/PC
额定电压DC 28 V
额定电压AC 28 V
针脚数 3
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压DC Max 28 V
额定电压AC Max 28 V
接触电阻Max 80 mΩ
安装方式 Through Hole
长度 15.74 mm
宽度 25.45 mm
高度 16.3 mm
触点材质 Beryllium Copper
工作温度 -25℃ ~ 70℃
产品生命周期 10000 Cycles
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
