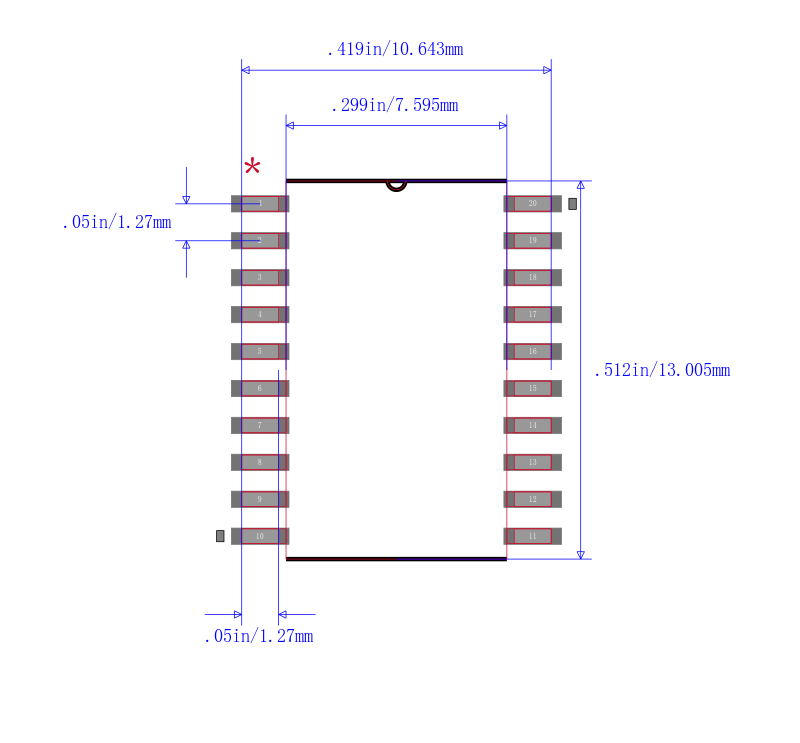

SN75LBC771DW

GEOPORTE收发器 GEOPORTE TRANSCEIVER

The SN75LBC771 is a low-power LinBiCMOSTM device that incorporates the drivers and receivers for a 9-pin GeoPort host interface. GeoPort combines hybrid EIA/A-422-B and EIA/TIA-423-B drivers and receivers to transmit data up to four-Mbit/s full duplex. GeoPort is a serial communications standard that is intended to replace the RS-232, AppleTalk, and printer ports all in one connector in addition to providing real-time data transfer capability. The SN75LBC771 provides point-to-point connections between GeoPort-compatible devices with data transmission rates up to 4-Mbit/s full duplex featuring a hot-plug capability. Applications include connection to telephone, ISDN, digital sound and imaging, fax-data modems, and other traditional serial and parallel connections. The GeoPort is backwardly compatible to both LocalTalk and AppleTalk.

While the SN75LBC771 is powered off VCC and VEE = 0, the outputs are in a high-impedance state. Also, when the shutdown SHDN terminal is high, all outputs go into a high-impedance state. A logic high on the driver enable DEN\\\\ terminal places the outputs of the differential driver into a high-impedance state. All drivers and receivers have fail-safe mechanisms that ensure a high output state when the inputs are left open.

The SN75LBC771 is characterized for operation over the 0°C to 70°C temperature range.

H = high level, L = low level, X = irrelevant, ? = indeterminate, Z = high impedance off

-0.2 V < VID < 0.2 V View datasheet View product folder
