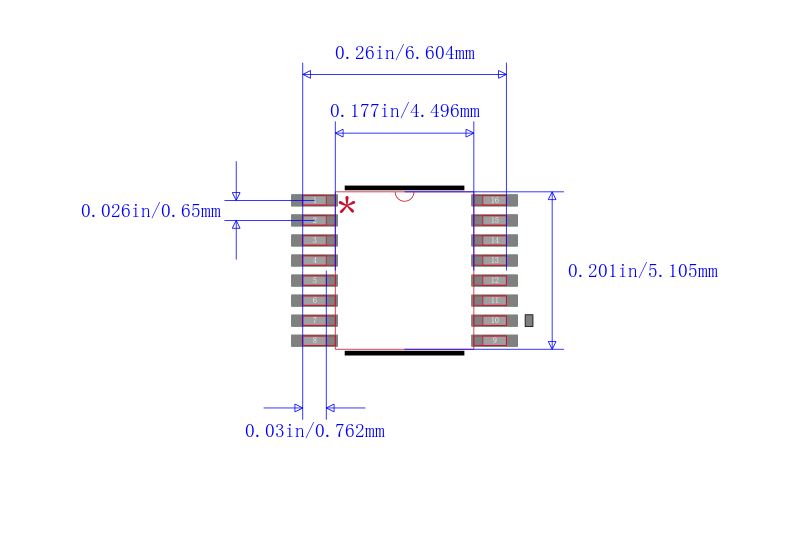

SN65LVDS050PWG4

高速差分线路驱动器和接收 HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

DESCRIPON

The SN65LVDS179, SN65LVDS180, SN65LVDS050, and SN65LVDS051 are differential line drivers and receivers that use low-voltage differential signaling LVDS to achieve signaling rates as high as 400 Mbps. The TIA/EIA-644 standard compliant electrical interface provides a minimum differential output voltage magnitude of 247 mV into a 100-Ω load and receipt of 50-mV signals with up to 1 V of ground potential difference between a transmitter and receiver.

FEATURES

• Meets or Exceeds the Requirements of ANSI TIA/EIA-644-1995 Standard

• Signaling Rates up to 400 Mbps

• Bus-Terminal ESD Exceeds 12 kV

• Operates From a Single 3.3-V Supply

• Low-Voltage Differential Signaling With

Typical Output Voltages of 350 mV and a 100-Ω Load

• Propagation Delay Times

– Driver: 1.7 ns Typ

– Receiver: 3.7 ns Typ

• Power Dissipation at 200 MHz

– Driver: 25 mW Typical

– Receiver: 60 mW Typical

• LVTTL Input Levels Are 5-V Tolerant

• Receiver Maintains High Input Impedance With VCC < 1.5 V

• Receiver Has Open-Circuit Fail Safe
